9906L

Obsolete

ebm-papst Inc.

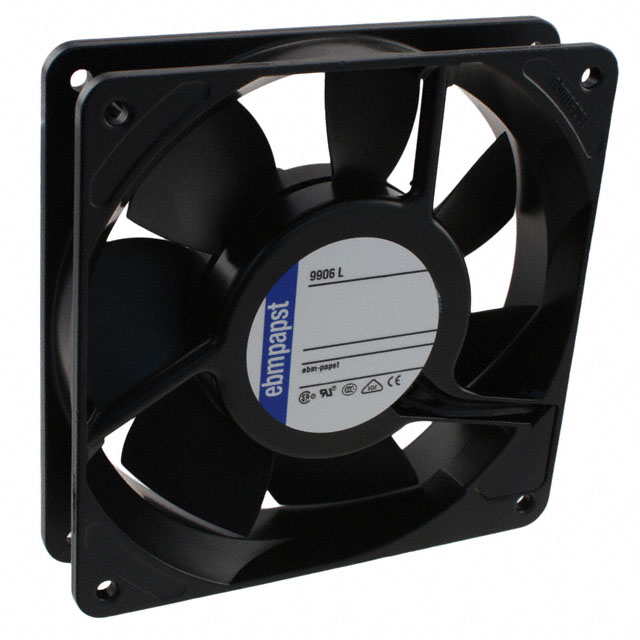

AC FAN AXIAL BALL BEARING 115V 58.9CFM 34DB 119 X 119 X 25.4MM LOW SPEED

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 115V 58.9CFM 34DB 119 X 119 X 25.4MM LOW SPEED

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	RPM	Voltage - Rated	Noise	Power (Watts)	Termination	Air Flow	Air Flow	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Bearing Type	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Approval Agency	Width [y]
ebm-papst Inc. 9906L	Metal	2100 RPM	115 VAC	34 dB(A)	8 W	2 Terminals	58.9 CFM	1.65 mł/min	Tubeaxial	119 mm	119 mm	Metal	Ball	62500 Hrs	80 °C	-40 °C	-40 °C	80 C	0.716 lb	324.77 g	CE CSA UL VDE	25 mm
ebm-papst Inc. 9906M	Metal	2450 RPM	115 VAC	37 dB	8 W	2 Terminals	65.3 CFM	1.83 m³/min	Tubeaxial	119 mm	119 mm	Metal	Ball	62500 Hrs	80 °C	-40 °C	-40 °C	80 C	0.716 lb	324.77 g		25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 58.9 CFM (1.65m³/min) 2 Terminals
