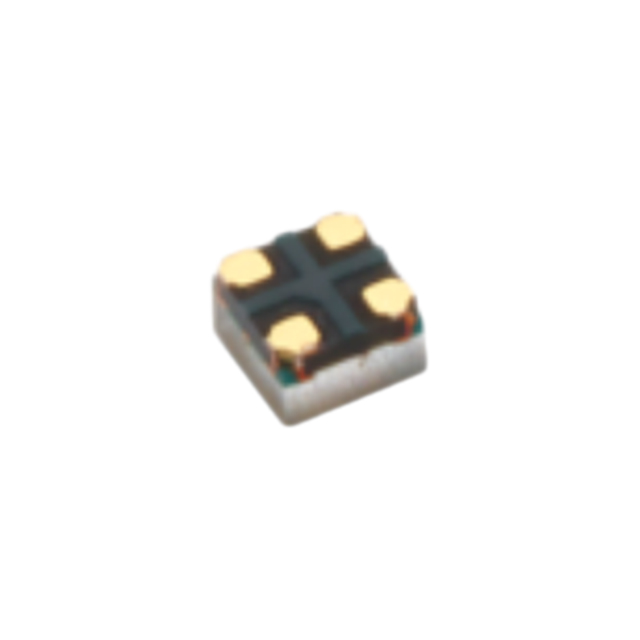

HSMF-C116
ActiveBroadcom Limited
LED RGB TOP MNT SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMF-C116
ActiveBroadcom Limited
LED RGB TOP MNT SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C116 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 10 mA |
| Current - Test [custom] | 5 mA |
| Lens Size | 1.05 mm |
| Lens Style | Square with Flat Top |
| Millicandela Rating [custom] | 45 mcd |
| Millicandela Rating [custom] | 220 mcd |
| Millicandela Rating [custom] | 80 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Size / Dimension [x] | 1.05 mm |
| Size / Dimension [y] | 1.05 mm |
| Viewing Angle [custom] | 140 ° |
| Viewing Angle [custom] | 140 ° |
| Viewing Angle [custom] | 137 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.8 V |
| Wavelength - Dominant | 622 nm, 528 nm, 471 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.98 | |
| 10 | $ 1.27 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.73 | |||
| 2000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.98 | ||
| 10 | $ 1.27 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.73 | |||
| 2000 | $ 0.69 | |||
| Tape & Reel (TR) | 4000 | $ 0.66 | ||
| 8000 | $ 0.64 | |||
| 12000 | $ 0.62 | |||
Description
General part information
HSMF-C116 Series
Red, Green, Blue (RGB) 622nm Red, 528nm Green, 471nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 3V Blue 0404 (1010 Metric)
