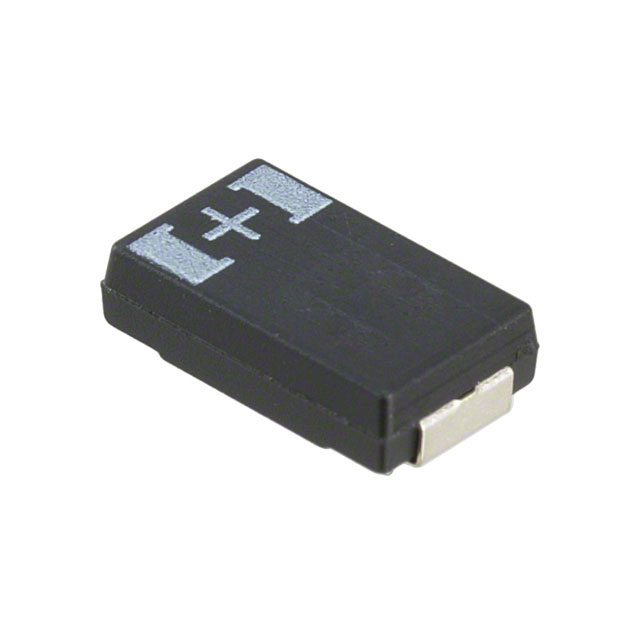

10THC68M
UnknownPanasonic Industrial Automation Sales
CAP TANT POLY 68UF 10V 2917
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPOSCAP™ Capacitors Product Catalog
10THC68M
UnknownPanasonic Industrial Automation Sales
CAP TANT POLY 68UF 10V 2917
Deep-Dive with AI
DocumentsPOSCAP™ Capacitors Product Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | 10THC68M |
|---|---|
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 45 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Lifetime @ Temp. | 1000 Hrs |
| Manufacturer Size Code | D2 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.57 | |
| 10 | $ 1.18 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.88 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.57 | ||
| 10 | $ 1.18 | |||
| 50 | $ 1.07 | |||
| 100 | $ 0.88 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.62 | |||
| Tape & Reel (TR) | 3000 | $ 0.58 | ||
| 6000 | $ 0.56 | |||
| 9000 | $ 0.54 | |||
| 15000 | $ 0.53 | |||
Description
General part information
10THC Series
68 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 45mOhm @ 100kHz
