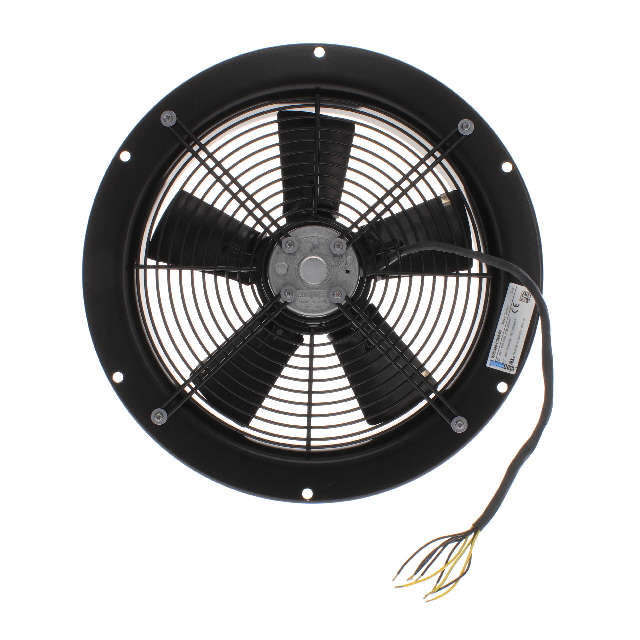

W2D300-CD04-53

Active

ebm-papst Inc.

AC AXIAL FAN CFM 2760 230VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN CFM 2760 230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	W2D300-CD04-53

Approval Agency	UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps) [Max]	0.66 A
Current Rating (Amps) [Min]	0.38 A
Fan Type	Tubeaxial, 3 Phase
Features	Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	35 °C
Operating Temperature [Max]	35 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	275 W
RPM	2800 RPM
Size / Dimension	Round
Size / Dimension [diameter]	397 mm
Termination	9 Wire Leads
Voltage - Rated [Max]	460 VAC
Voltage - Rated [Min]	266 VAC
Weight	10.6 lbs
Weight	4.81 kg
Width [x]	101.5 mm

Part	Fan Type	Termination	Size / Dimension [diameter]	Size / Dimension	Power (Watts)	Voltage - Rated	Material - Blade	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Ingress Protection	Width [x]	Approval Agency	Bearing Type	Static Pressure	Static Pressure	Material - Frame	Features	Weight	Weight	Voltage - Rated [Max]	Voltage - Rated [Min]
ebm-papst Inc. W2D300-CP02-31	Tubeaxial 3 Phase	7 Wire Leads with Splice Terminals	397 mm	Round	300 W	230 VAC 400 VAC	Steel	2750 RPM	-25 °C	40 °C	40 °C	-25 °C	36.45 mł/min	1301.7 CFM	0.84 A	0.48 A	IP44	114 mm	CCC CE EAC	Ball	0.502 in H2O	125 Pa	Steel	Dual Voltage
ebm-papst Inc. W2D300-CD04-53	Tubeaxial 3 Phase	9 Wire Leads	397 mm	Round	275 W		Steel	2800 RPM	-25 °C	35 °C	35 °C	-25 °C			0.66 A	0.38 A	IP44	101.5 mm	CE CSA UL	Ball				Dual Voltage Electronic Commutation (EC) Thermal Overload Protector (TOP)	10.6 lbs	4.81 kg	460 VAC	266 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial, 3 Phase 266/460VAC Round - 397mm Dia Ball 9 Wire Leads
