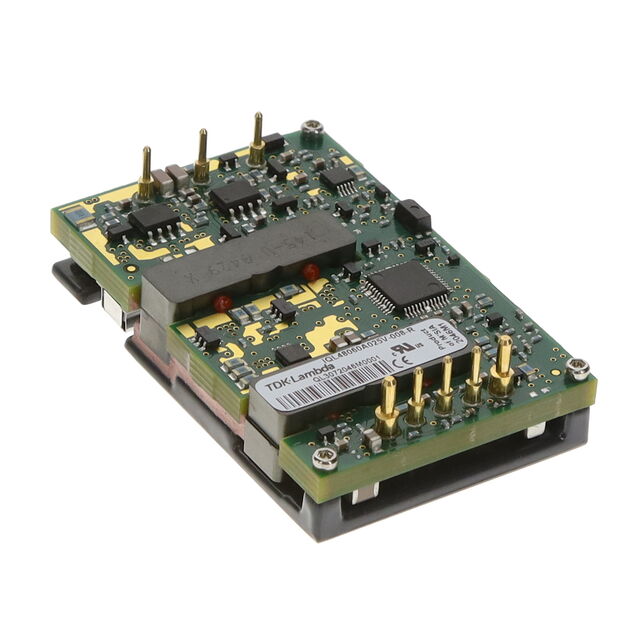

IQL48060A025V-008-R - IQL48060A025V-008-R

IQL48060A025V-008-R

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 150 W, 1 OUTPUT, 2.5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
IQL48060A025V-008-R - IQL48060A025V-008-R

IQL48060A025V-008-R

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 150 W, 1 OUTPUT, 2.5 V

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationIQL48060A025V-008-R
ApplicationsITE (Commercial)
Approval AgencyCE, CB
Current - Output (Max) [Max]60 A
Efficiency89 %
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]115 °C
Operating Temperature [Min]-40 °C
Package / CaseQuarter Brick
Power (Watts)150 W
Size / Dimension [x]57.9 mm
Size / Dimension [x]2.28 in
Size / Dimension [y]1.45 in
Size / Dimension [y]36.8 mm
Size / Dimension [z]13.2 mm
Size / Dimension [z]0.52 "
Supplier Device PackageQuarter Brick
TypeIsolated Module
Voltage - Input (Max) [Max]75 V
Voltage - Input (Min) [Min]36 V
Voltage - Isolation1.5 kV
Voltage - Output 12.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 97.30
5$ 91.73
10$ 89.43
25$ 86.48
40$ 85.00
80$ 82.87
NewarkEach 1$ 70.67

Description

General part information

IQL48060 Series

Isolated DC/DC Converters - Through Hole 36-75VDC
