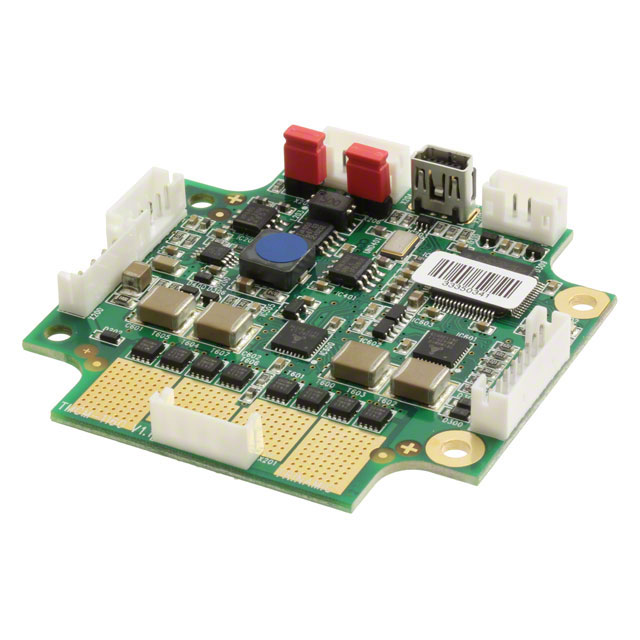

TMCM-1160-TMCL

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 2.8A 9-51V LOAD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 2.8A 9-51V LOAD

Technical Specifications

Parameters and characteristics for this part

Part	Accessory Type	Usage	For Use With/Related Products	Type	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Control / Drive Type	Motor Type	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface
Analog Devices Inc./Maxim Integrated TMCM-1160-CABLE	Cable Assembly	Motor	TMCM-1160 Series
Analog Devices Inc./Maxim Integrated TMCM-1160-CANOPEN				Board	Chassis Mount	51 V	9 V	40 °C	0 °C	Bipolar Stepper	Stepper	2.8 A	12 V	48 V
Analog Devices Inc./Maxim Integrated TMCM-1160-TMCL				Board	Chassis Mount	51 V	9 V	40 °C	0 °C	Bipolar Stepper	Stepper	2.8 A	12 V	48 V	RS-485 Step / Direction USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 207.07

General part information

Stepper, Bipolar 12 ~ 48VDC Supply 2.8A 9 ~ 51V Load

Technical documentation and resources

No documents available
