SRR7032-2R2M

Active

Bourns Inc.

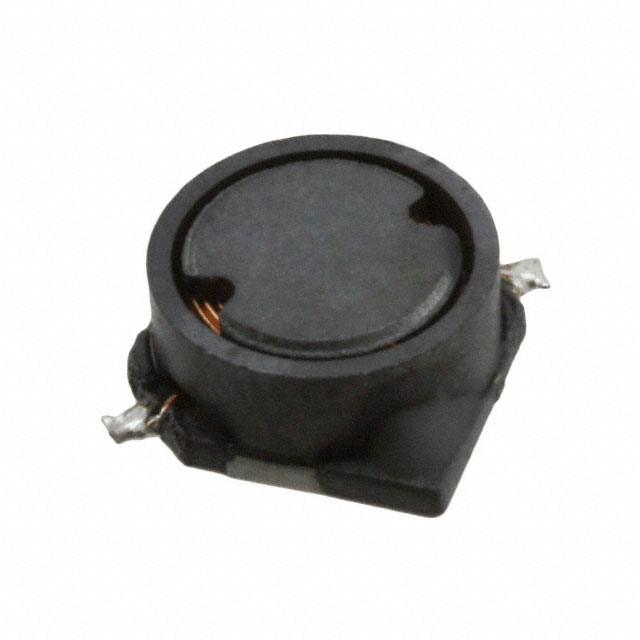

SURFACE MOUNT POWER INDUCTOR, SRR7032 SERIES, 2.2 H, 20%, SHIELDED, 0.022 OHM, 2.65 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

SRR7032-2R2M

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, SRR7032 SERIES, 2.2 H, 20%, SHIELDED, 0.022 OHM, 2.65 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR7032-2R2M

Current - Saturation (Isat)	2.6 A
Current Rating (Amps)	2.65 A
Height - Seated (Max) [Max] [z]	3.4 mm
Height - Seated (Max) [Max] [z]	0.134 in
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	12, 7.96 MHz
Shielding	Shielded
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Tolerance	20 %
Type	Wirewound, Drum Core

SRR7032 Series

Part	Material - Core	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	DC Resistance (DCR)	Tolerance	Package / Case	Inductance	Current - Saturation (Isat)	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Mounting Type	DC Resistance (DCR) [Max]
Bourns Inc. SRR7032-4R7M	Ferrite	43 MHz	7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound	42 mOhm	20 %	Nonstandard	4.7 ÁH	2 A	Shielded	2 A	125 °C	-40 °C	7.96 MHz 16	3.4 mm	0.134 in	100 kHz	Surface Mount
Bourns Inc. SRR7032-101M	Ferrite	12 MHz	7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound		20 %	Nonstandard	100 µH	500 mA	Shielded	450 mA	125 °C	-40 °C	28 796 kHz	3.4 mm	0.134 in	100 kHz	Surface Mount	540 mOhm
Bourns Inc. SRR7032-220M	Ferrite	29 MHz	7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound		20 %	Nonstandard	22 µH	1.05 A	Shielded	960 mA	125 °C	-40 °C	2.52 MHz 20	3.4 mm	0.134 in	100 kHz	Surface Mount	135 mOhm
Bourns Inc. SRR7032-2R2M	Ferrite		7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound		20 %	Nonstandard	2.2 µH	2.6 A	Shielded	2.65 A	125 °C	-40 °C	7.96 MHz 12	3.4 mm	0.134 in	100 kHz	Surface Mount
Bourns Inc. SRR7032-102M	Ferrite	3.1 MHz	7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound		20 %	Nonstandard	1 mH	140 mA	Shielded	150 mA	125 °C	-40 °C	120 252 kHz	3.4 mm	0.134 in	100 kHz	Surface Mount	5.4 Ohm
Bourns Inc. SRR7032-5R6M	Ferrite		7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound		20 %	Nonstandard	5.6 µH		Shielded		125 °C	-40 °C		3.4 mm	0.134 in	100 kHz	Surface Mount
Bourns Inc. SRR7032-681M	Ferrite	3.8 MHz	7 mm	0.276 in	0.276 "	7 mm	Drum Core Wirewound		20 %	Nonstandard	680 µH	150 mA	Shielded	160 mA	125 °C	-40 °C	58 796 kHz	3.4 mm	0.134 in	100 kHz	Surface Mount	3.75 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.67
		25	$ 0.61
		50	$ 0.56
		100	$ 0.50
		250	$ 0.47
		500	$ 0.40
	Digi-Reel®	1	$ 0.78
		10	$ 0.67
		25	$ 0.61
		50	$ 0.56
		100	$ 0.50
		250	$ 0.47
		500	$ 0.40
	Tape & Reel (TR)	1500	$ 0.28
Newark	Each (Supplied on Full Reel)	1	$ 0.39
		5000	$ 0.38
		10000	$ 0.35
		20000	$ 0.33
		30000	$ 0.30
		50000	$ 0.29

Description

General part information

SRR7032 Series

2.2 µH Shielded Drum Core, Wirewound Inductor 2.65 A 22mOhm Max Nonstandard

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
