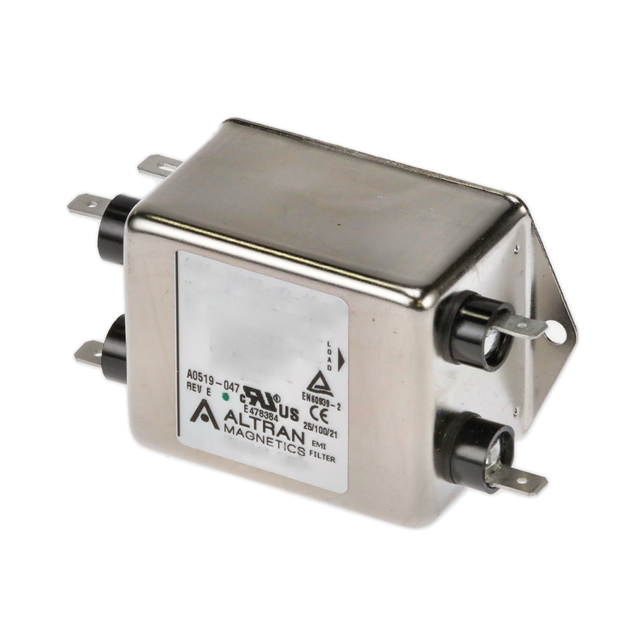

AMI-M12Z-1-6-B

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 6A CHASSIS

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 6A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Current	Inductance	Voltage - Rated AC	Filter Type	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Applications
Altran Magnetics, LLC AMI-M12Z-1-20-B	Chassis Mount	60 Hz	50 Hz	Quick Connect	20 A	1.8 mH	250 V	Single Phase	Two Stage	-10 °C	40 °C	General Purpose
Altran Magnetics, LLC AMI-M12Z-1-3-B	Chassis Mount	60 Hz	50 Hz	Quick Connect	3 A	1.03 mH	250 V	Single Phase	Two Stage	-10 °C	40 °C	General Purpose
Altran Magnetics, LLC AMI-M12Z-1-6-B	Chassis Mount	60 Hz	50 Hz	Quick Connect	6 A	1.8 mH	250 V	Single Phase	Two Stage	-10 °C	40 °C	General Purpose
Altran Magnetics, LLC AMI-M12Z-6-20-B	Chassis Mount	60 Hz	50 Hz	Threaded Post (8-32)	20 A	1.8 mH	250 V	Single Phase	Two Stage	-10 °C	40 °C	General Purpose
Altran Magnetics, LLC AMI-M12Z-1-10-B	Chassis Mount	60 Hz	50 Hz	Quick Connect	10 A	1.2 mH	250 V	Single Phase	Two Stage	-10 °C	40 °C	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 6 A 250V 50/60Hz Two Stage Quick Connect

Technical documentation and resources
