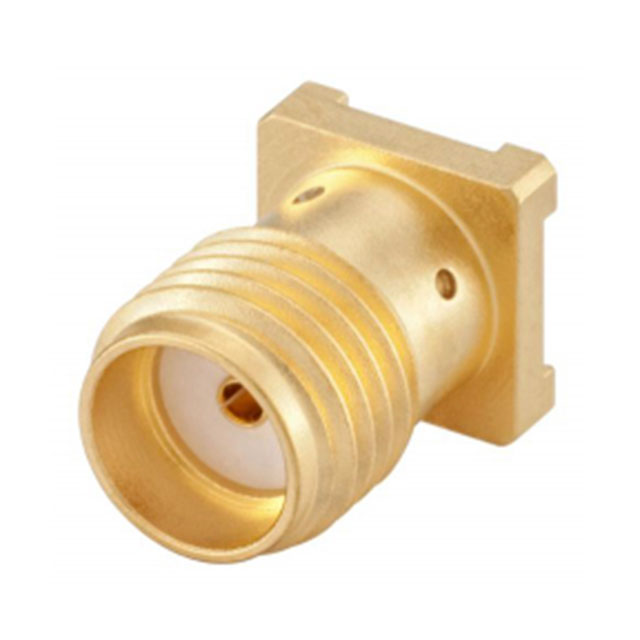

32K10A-40ML5

Active

Rosenberger

CONN SMA JACK STR 50OHM SMD

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	32K10A-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Number of Ports	Connector Type	Impedance	Dielectric Material	Mounting Type	Shield Termination	Body Material	Center Contact Plating	Frequency - Max [Max]	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Housing Color	Voltage Rating	Center Contact Material	Connector Style
Rosenberger 32K10A-40ML5	1	Female Socket Jack	50 Ohms	Polytetrafluoroethylene (PTFE)	Surface Mount	Solder	Brass	Gold	12.4 GHz	Gold	155 °C	-55 °C	Solder	Gold	480 V	Beryllium Copper	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Surface Mount Solder
