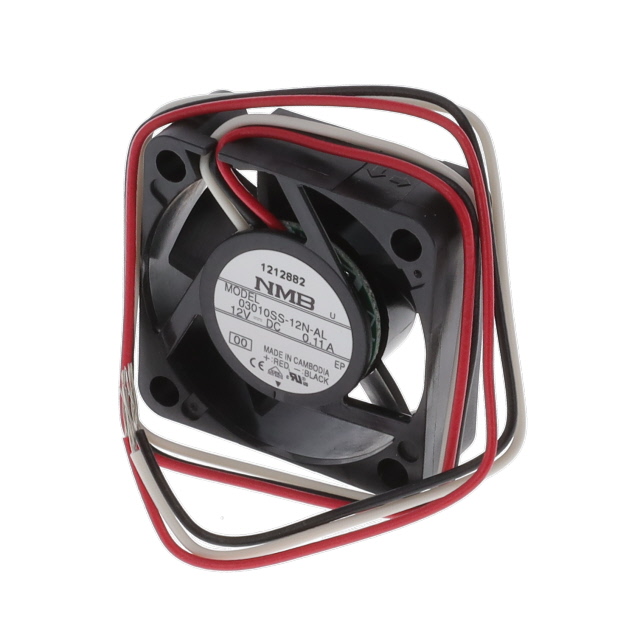

03010SS-12N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 4.24 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

03010SS-12N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 4.24 CFM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	03010SS-12N-AL-00

Air Flow	0.118 m³/min
Air Flow	4.2 CFM
Bearing Type	Sleeve
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	10500 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	59.8 Pa
Static Pressure	0.24 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	10 mm

03010SS Series

Part	Material - Frame	Noise	Current Rating (Amps)	Bearing Type	Termination	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	RPM	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Features	Width [y]	Static Pressure	Static Pressure	Weight	Weight	Air Flow
NMB TECHNOLOGIES 03010SS-12L-AA-00	Plastic	26 dB	60 mA	Sleeve	2 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	8500 RPM	Plastic	13.2 VDC	7 V	0.098 mł/min	3.5 CFM	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	720 mW	Auto Restart	10 mm
NMB TECHNOLOGIES 03010SS-12N-AL-00	Plastic	28 dB		Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	10500 RPM	Plastic			0.118 m³/min	4.2 CFM	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Auto Restart Locked Rotor Sensor	10 mm	59.8 Pa	0.24 in H2O
NMB TECHNOLOGIES 03010SS-12N-AT-00	Plastic	28 dB		Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	10500 RPM	Plastic			0.118 m³/min	4.2 CFM		70 °C	70 °C	-10 °C	-10 °C		Speed Sensor (Tach)	10 mm	59.8 Pa	0.24 in H2O	8.62 g	0.019 lb
NMB TECHNOLOGIES 03010SS-12L-AL-00	Plastic	26 dB	60 mA	Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	8500 RPM	Plastic	13.2 VDC	7 V	0.098 mł/min	3.5 CFM	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	720 mW	Auto Restart Locked Rotor Sensor	10 mm
NMB TECHNOLOGIES 03010SS-05M-AL-00	Plastic	26 dB		Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	5 V	9500 RPM	Plastic	5.5 V	4.5 V	3.9 CFM		30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	0.8 W	Auto Restart Locked Rotor Sensor	10 mm	47.3 Pa	0.19 in H2O			0.109 m³/min
NMB TECHNOLOGIES 03010SS-12M-AL-00	Plastic	30 dB(A)	70 mA	Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	9500 RPM	Plastic	13.2 VDC	7 V	3.9 CFM		30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	840 mW	Auto Restart Locked Rotor Sensor	10 mm	47.3 Pa	0.19 in H2O			0.109 m³/min
NMB TECHNOLOGIES 03010SS-12L-AT-00	Plastic	26 dB	60 mA	Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	8500 RPM	Plastic	13.2 VDC	7 V	0.098 mł/min	3.5 CFM	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	720 mW	Auto Restart Speed Sensor (Tach)	10 mm
NMB TECHNOLOGIES 03010SS-12M-AA-00	Plastic	30 dB(A)	70 mA	Sleeve	2 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	9500 RPM	Plastic	13.2 VDC	7 V	3.9 CFM		30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	840 mW	Auto Restart	10 mm	47.3 Pa	0.19 in H2O			0.109 m³/min
NMB TECHNOLOGIES 03010SS-12N-AA-00	Plastic	34 dB(A)		Sleeve	2 Wire Leads	Tubeaxial	30 mm	30 mm	12 VDC	10500 RPM	Plastic			0.118 m³/min	4.2 CFM	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Auto Restart	10 mm	59.8 Pa	0.24 in H2O
NMB TECHNOLOGIES 03010SS-05N-AL-00	Plastic	28 dB	0.21 A	Sleeve	3 Wire Leads	Tubeaxial	30 mm	30 mm	5 V	10500 RPM	Plastic	5.5 V	4.5 V	0.118 m³/min	4.2 CFM	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	1.05 W	Auto Restart Locked Rotor Sensor	10 mm	59.8 Pa	0.24 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.87
		10	$ 6.64
		25	$ 6.45
		50	$ 6.06
		100	$ 5.45
		250	$ 5.37
		500	$ 5.03

Description

General part information

03010SS Series

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Sleeve 4.2 CFM (0.118m³/min) 3 Wire Leads
