T4132012041-000
ActiveTE Connectivity Raychem Cable Protection

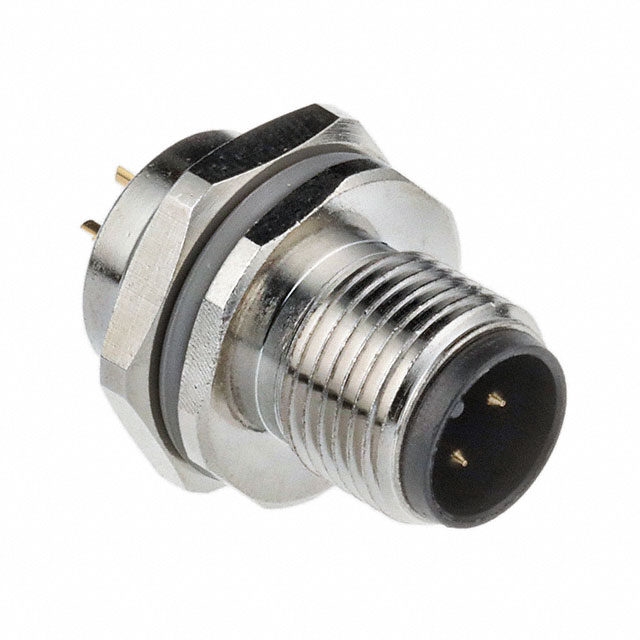

SENSOR CONNECTOR, M12, MALE, 4 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
T4132012041-000
ActiveTE Connectivity Raychem Cable Protection
SENSOR CONNECTOR, M12, MALE, 4 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4132012041-000 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
T41320 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Orientation | Material Flammability Rating | Shell Material | Insert Material | Color | Contact Finish - Mating | Mounting Feature | Shielding | Voltage Rating | Applications | Shell Size - Insert | Shell Finish | Current Rating (Amps) | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Male Pins Receptacle | A | UL94 V-0 | Copper Alloy | Polyamide (PA66) Nylon 6/6 | Silver | Gold | Bulkhead - Rear Side Nut | Unshielded | 250 VDC | Industrial | M12-3 | Nickel | 4 A | IP67 - Dust Tight Waterproof | 3 µin | 0.076 µm | Metal | Copper Alloy | |
TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Male Pins Receptacle | A | UL94 V-0 | Copper Alloy | Polyamide (PA66) Nylon 6/6 | Silver | Gold | Bulkhead - Rear Side Nut | Unshielded | 250 VDC | Industrial | M12-4 | Nickel | 4 A | IP67 - Dust Tight Waterproof | 3 µin | 0.076 µm | Metal | Copper Alloy | 4 |
TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Male Pins Plug | A | Copper Alloy | Polyamide (PA66) Nylon 6/6 | Silver | Gold | Bulkhead - Rear Side Nut | Unshielded | 30 VDC | Industrial | M12-8 | Nickel | 2 A | IP67 - Dust Tight Waterproof | Metal | Copper Alloy | 8 | |||
TE Connectivity Raychem Cable Protection | 85 °C | -40 °C | Male Pins Receptacle | A | UL94 V-0 | Copper Alloy | Polyamide (PA66) Nylon 6/6 | Silver | Gold | Bulkhead - Rear Side Nut | Unshielded | 250 VDC | Industrial | M12-2 | Nickel | 4 A | IP67 - Dust Tight Waterproof | 3 µin | 0.076 µm | Metal | Copper Alloy | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T41320 Series
4 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount & Wire Mount, Reverse Gender, Nickel, M12 Connector
