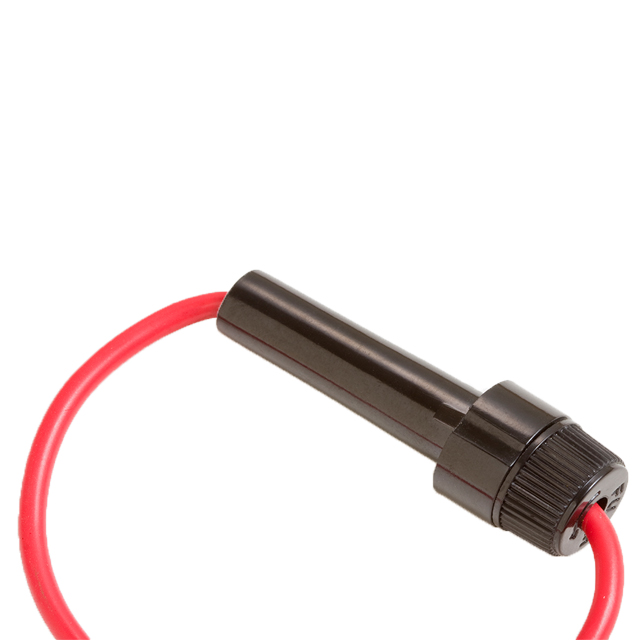

LPC-24B-12R

Active

OptiFuse

5X20MM FUSEHOLDER, 20A-12AWG RED

Search across all available documentation for this part.

Active

OptiFuse

5X20MM FUSEHOLDER, 20A-12AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	LPC-24B-12R

Contact Finish	Nickel
Contact Material	Brass
Current Rating (Amps)	20 A
For Use With/Related Products [x]	5 mm
For Use With/Related Products [y]	20 mm
Fuse Size [diameter]	5 mm
Fuse Size [diameter]	0.197 in
Fuse Size [x]	0.787 in
Fuse Size [x]	20 mm
Fuse Type	Cartridge
Fuseholder Type	Holder
Mounting Type	Free Hanging (In-Line)
Number of Circuits	1
Termination Style	Wire Leads
Voltage	250 V

Part	Mounting Type	Contact Finish	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Fuse Size [x]	Current Rating (Amps)	For Use With/Related Products [y]	For Use With/Related Products [x]	Fuseholder Type	Contact Material	Fuse Type	Voltage	Termination Style	Number of Circuits
OptiFuse LPC-24B-12R	Free Hanging (In-Line)	Nickel	0.787 in	5 mm	0.197 in	20 mm	20 A	20 mm	5 mm	Holder	Brass	Cartridge	250 V	Wire Leads	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.28

General part information

Fuse Holder 20 A 250V 1 Circuit Cartridge Free Hanging (In-Line)
