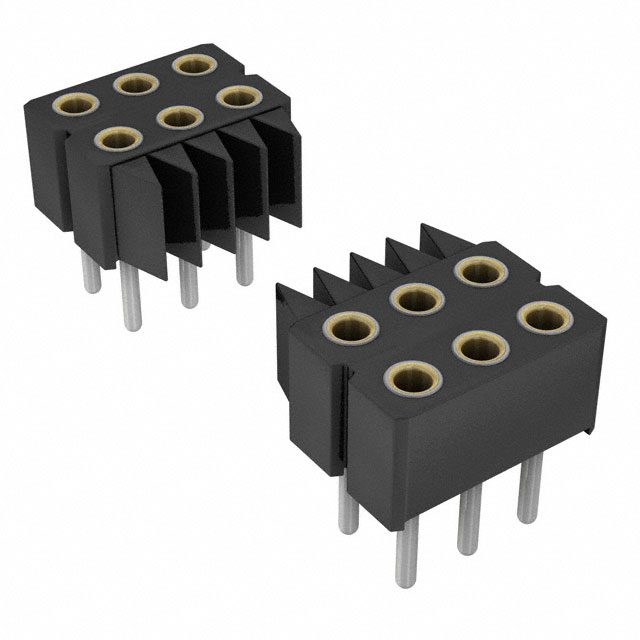

805-83-090-10-012101

Active

PRECI-DIP SA

CONN SOCKET 90POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

805-83-090-10-012101

Active

PRECI-DIP SA

CONN SOCKET 90POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	805-83-090-10-012101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

805-83 Series

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Rows	Number of Positions	Insulation Material	Number of Positions Loaded	Contact Type	Fastening Type	Contact Shape	Connector Type	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Termination	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]
PRECI-DIP SA 805-83-036-10-003101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	36	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	7.92 mm	0.312 in	0.121 in	3.08 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper
PRECI-DIP SA 805-83-051-10-229101	5.08 mm	0.2 "	0.2 in	5.08 mm	Gold	3	51	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder				3.2 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper	0.165 in	4.2 mm	18	0.126 in
PRECI-DIP SA 805-83-090-10-012101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	90	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder					Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper	0.165 in	4.2 mm		0.125 in	3.18 mm
PRECI-DIP SA 805-83-075-10-005101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	75	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	8.4 mm	0.331 in	0.116 in	2.95 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper
PRECI-DIP SA 805-83-030-10-001101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	30	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	6.91 mm		0.122 "	3.1 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper	0.272 "
PRECI-DIP SA 805-83-009-10-005101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	9	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	8.4 mm	0.331 in	0.116 in	2.95 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper
PRECI-DIP SA 805-83-039-10-005101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	39	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	8.4 mm	0.331 in	0.116 in	2.95 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper
PRECI-DIP SA 805-83-048-10-001101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	48	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	6.91 mm		0.122 "	3.1 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper	0.272 "
PRECI-DIP SA 805-83-069-10-229101	5.08 mm	0.2 "	0.2 in	5.08 mm	Gold	3	69	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder				3.2 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper	0.165 in	4.2 mm	24	0.126 in
PRECI-DIP SA 805-83-021-10-001101	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	3	21	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Female Socket	Push-Pull	Circular	Socket	3 A	Tin	Black	Solder	6.91 mm		0.122 "	3.1 mm	Through Hole	29.5 Áin	0.75 Ám	UL94 V-0	-55 °C	125 °C	Beryllium Copper	0.272 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 11.13

Description

General part information

805-83 Series

90 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
