09300061750

Active

HARTING Technology Group

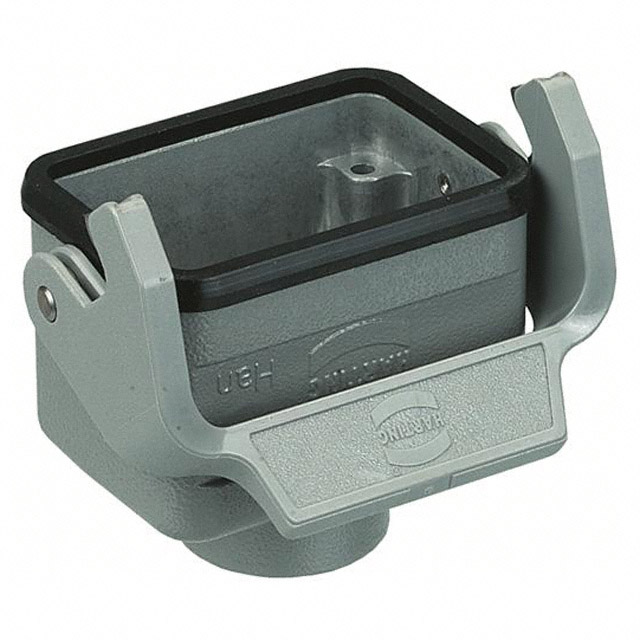

HEAVY DUTY CONNECTOR, COUPLER, PG13.5 TOP ENTRY, LOW PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, COUPLER, PG13.5 TOP ENTRY, LOW PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY

Technical Specifications

Parameters and characteristics for this part

Specification	09300061750

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.201 "
Size / Dimension [z]	55.9 mm
Style	Bottom Entry
Thread Size	PG13.5

Part	Material	Includes	Size	Frame Type	Gender	Housing Material	Thread Size	Lock Location	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection	Housing Finish	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Housing Color	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09300061704	Stainless Steel	1 Frame 4 Screws	6B	Fixed Frame	Non-Gendered
HARTING Technology Group 09300061750			6B			Aluminum Die Cast	PG13.5	Locking Clip (1) on Base Bottom	Hood - Coupling	125 °C	-40 °C	Bottom Entry	IP65 - Dust Tight Water Resistant	Powder Coated	1.693 in	43 mm	2.201 "	60 mm	55.9 mm	2.362 in	Cable to Cable	Gray
HARTING Technology Group 09300061541			6B			Aluminum Die Cast	PG16	Locking Clip (1) on Base Bottom	Hood	125 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant	Powder Coated	1.693 in		2.016 in	60 mm		2.362 in		Gray	51.2 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry PG13.5 6B IP65 - Dust Tight, Water Resistant
