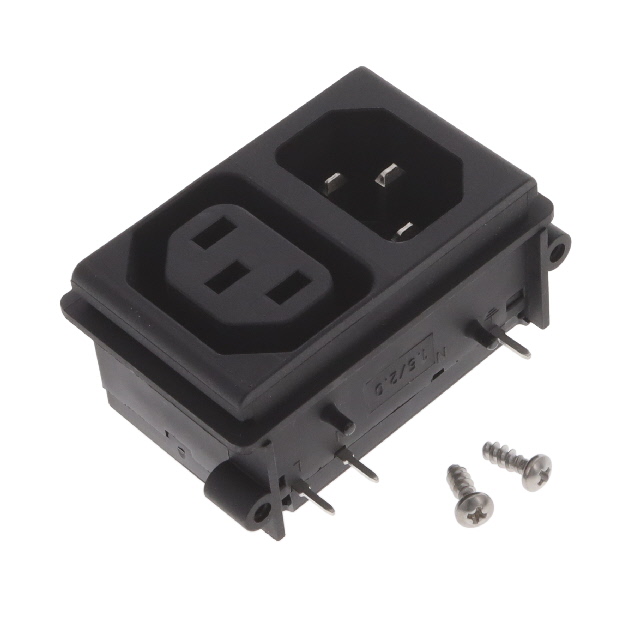

KP01.1052.01
ActiveSCHURTER Inc.
PWR ENT IN/OUT IEC320-2-2F PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KP01.1052.01
ActiveSCHURTER Inc.
PWR ENT IN/OUT IEC320-2-2F PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KP01.1052.01 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | VDE, CCC, cURus |
| Connector Style | IEC 320-2-2/F, IEC 320-C14 |
| Connector Type | Receptacle, Female Sockets, Receptacle, Male Blades |
| Current Rating - Appliance Inlet | 10 A |
| Features | Terminating Cover |
| Filter Type | Unfiltered - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions | 3 |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness | 2 mm |
| Panel Thickness | 0.079 in |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.52 | |
| 50 | $ 6.92 | |||
| 100 | $ 6.54 | |||
Description
General part information
KP01.1052 Series
Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
