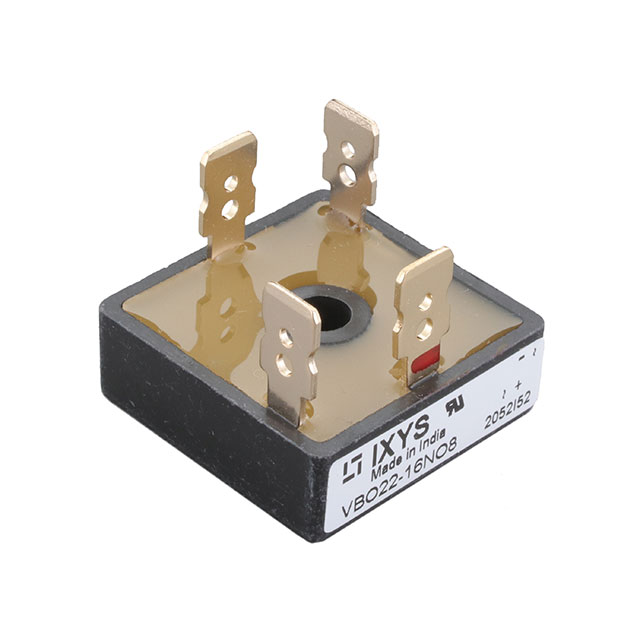

VBO22-16NO8

Active

IXYS

BRIDGE RECT 1P 1.6KV 21A FO-B

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.6KV 21A FO-B

Technical Specifications

Parameters and characteristics for this part

Specification	VBO22-16NO8

Current - Average Rectified (Io)	21 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-Square, FO-B
Supplier Device Package	FO-B
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	2.2 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Diode Type	Package / Case	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)
IXYS VBO22-18NO8	1.8 kV	150 °C	-40 °C	300 µA	21 A	QC Terminal	Single Phase	4-Square FO-B	Standard	FO-B	2.2 V
IXYS VBO22-08NO8	800 V	150 °C	-40 °C	300 µA	21 A	QC Terminal	Single Phase	4-Square FO-B	Standard	FO-B	2.2 V
IXYS VBO22-16NO8		150 °C	-40 °C	300 µA	21 A	QC Terminal	Single Phase	4-Square FO-B	Standard	FO-B	2.2 V	1.6 kV
IXYS VBO22-12NO8	1.2 kV	150 °C	-40 °C	300 µA	21 A	QC Terminal	Single Phase	4-Square FO-B	Standard	FO-B	2.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.6 kV QC Terminal FO-B
