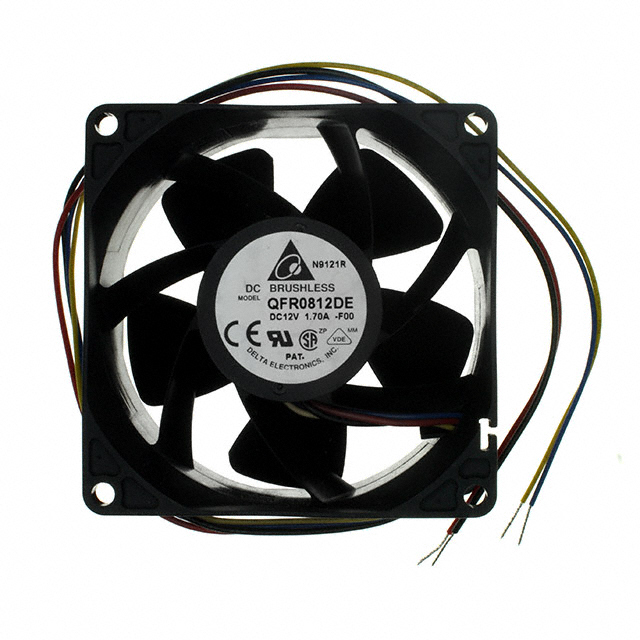

QFR0812DE-F00

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert QFR0812DE-F00 Datasheet +3

QFR0812DE-F00

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert QFR0812DE-F00 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFR0812DE-F00

Air Flow	105.2 CFM
Air Flow	2.95 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	13.8 W
RPM	9000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	332.5 Pa
Static Pressure	1.335 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	160.12 g
Weight	0.353 lb
Width [y]	38 mm

QFR0812 Series

Part	Weight	Weight	Termination	Noise	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Air Flow	Air Flow	Width [y]	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Features	Material - Frame	Bearing Type	Approval Agency	Power (Watts)	Static Pressure	Static Pressure	Lifetime @ Temp.	Current Rating (Amps)
Delta Electronics QFR0812UHEYDW	160.12 g	0.353 lb	4 Wire Leads	60 dB(A)	13.2 VDC	10.8 VDC	12 VDC	80 mm	80 mm	Plastic	105.2 CFM	2.95 m³/min	38 mm	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	9000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Ball	CE cURus VDE	13.8 W	332.5 Pa	1.335 in H2O
Delta Electronics QFR0812HH-F00	86.64 g	0.191 lb	3 Wire Leads	36.4 dB(A)	13.2 VDC	5 VDC	12 VDC	80 mm	80 mm	Plastic	41.6 CFM	1.16 mł/min	25.4 mm	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	3300 RPM	Locked Rotor Protection Speed Sensor (Tach)	Plastic	Ball	CE cURus VDE	1.92 W	47.1 Pa	0.189 in H2O	70000 Hrs
Delta Electronics QFR0812UHE-F00	160.12 g	0.353 lb	3 Wire Leads	60 dB(A)	13.2 VDC	7 V	12 VDC	80 mm	80 mm	Plastic	105.2 CFM	2.95 m³/min	38 mm	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	9000 RPM	Locked Rotor Protection Speed Sensor (Tach)	Plastic	Ball	CE CSA UL VDE	13.8 W	332.5 Pa	1.335 in H2O	50000 Hrs
Delta Electronics QFR0812UHE-SP01							12 VDC	80 mm	80 mm	Plastic			38 mm	Tubeaxial							Plastic	Ball
Delta Electronics QFR0812VH-F00	88.45 g	0.195 lb	3 Wire Leads	38.3 dB(A)	13.2 VDC	5 VDC	12 VDC	80 mm	80 mm	Plastic	47.8 CFM	1.34 m³/min	25.4 mm	Tubeaxial					3800 RPM	Speed Sensor (Tach)	Plastic	Ball	CE CSA UL VDE	2.52 W	62.5 Pa	0.251 in H2O		0.21 A
Delta Electronics QFR0812DE-F00	160.12 g	0.353 lb	4 Wire Leads	60 dB(A)	13.2 VDC	10.8 VDC	12 VDC	80 mm	80 mm	Plastic	105.2 CFM	2.95 m³/min	38 mm	Tubeaxial	60 °C	60 °C	-10 °C	-10 °C	9000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Ball	CE CSA UL VDE	13.8 W	332.5 Pa	1.335 in H2O	50000 Hrs
Delta Electronics QFR0812UH-CX14	88.45 g	0.195 lb	4 Wire Leads	50.5 dB(A)	12.6 VDC	10.8 VDC	12 VDC	80 mm	80 mm	Plastic	70.2 CFM	1.97 m³/min	25.4 mm	Tubeaxial	60 °C	60 °C	-10 °C	-10 °C	5600 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Ball	CE cURus VDE	6.6 W	137.2 Pa	0.551 in H2O	70000 Hrs	0.55 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QFR0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 105.2 CFM (2.95m³/min) 4 Wire Leads
