TVS3V3L4UE6327HTSA1
ActiveInfineon Technologies
TVS DIODE 3.3VWM 7.7VC SC74-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TVS3V3L4UE6327HTSA1
ActiveInfineon Technologies
TVS DIODE 3.3VWM 7.7VC SC74-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TVS3V3L4UE6327HTSA1 |
|---|---|
| Applications | Ethernet |
| Bidirectional Channels | 2 |
| Capacitance @ Frequency | 2 pF |
| Current - Peak Pulse (10/1000µs) | 20 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |

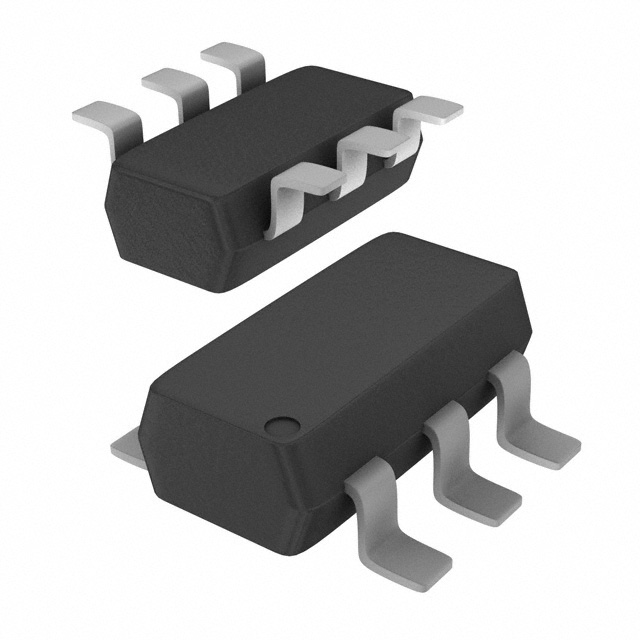

| Package / Case | SC-74, SOT-457 |
| Power Line Protection | False |
| Supplier Device Package | PG-SC74-6 |
| Type | Zener |
| Unidirectional Channels [custom] | 4 |
| Voltage - Clamping (Max) @ Ipp | 7.7 V |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.52 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.52 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
| 6000 | $ 0.22 | |||
| 9000 | $ 0.20 | |||
| 30000 | $ 0.20 | |||
Description
General part information
TVS3V3 Series
7.7V (Typ) Clamp 20A (8/20µs) Ipp Tvs Diode Surface Mount PG-SC74-6
