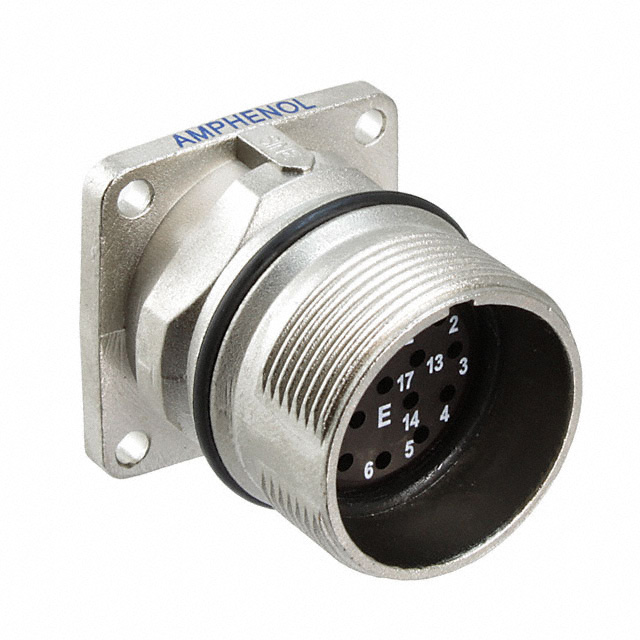

MA1LAE1700

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG F/M 17POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG F/M 17POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MA1LAE1700

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	E
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets or Male Pins

Part	Current Rating (Amps)	Mounting Feature	Termination	Contact Finish - Mating	Connector Type	Ingress Protection	Shell Finish	Shell Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Voltage Rating	Primary Material	Orientation	Color	Number of Positions	Contact Size	Type	Housing Color	Contact Type	Material Flammability Rating	Insert Material	Contact Shape	Note
Amphenol Sine Systems Corp MA1LAE1700-KIT	9 A	Flange	Crimp	Gold	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Nickel	Zinc Die Cast	M23-17	-20 C	130 °C	Shielded	125 VAC	Metal	E	Silver
Amphenol Sine Systems Corp MA1LAE1200S-KIT	9 A	Flange	Crimp	Gold	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel	Zinc Die Cast	M23-12	-20 C	130 °C	Shielded	125 VAC	Metal	E	Silver	12
Amphenol Sine Systems Corp MA1LAE1700S-KIT	9 A	Flange	Crimp	Gold	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Nickel	Zinc Die Cast	M23-17	-20 C	130 °C	Shielded	125 VAC	Metal	E	Silver
Amphenol Sine Systems Corp MA1LAE1700		Flange			Receptacle Housing	IP67 - Dust Tight Waterproof	Nickel	Zinc Die Cast	M23-17	-20 C	130 °C	Shielded			E			1 mm	For Female Sockets or Male Pins	Silver	Crimp	UL94 V-0	Polyamide (PA66) Nylon 6/6	Circular	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Receptacle Housing Panel Mount
