C1648A.41.10

Active

Prysmian Group

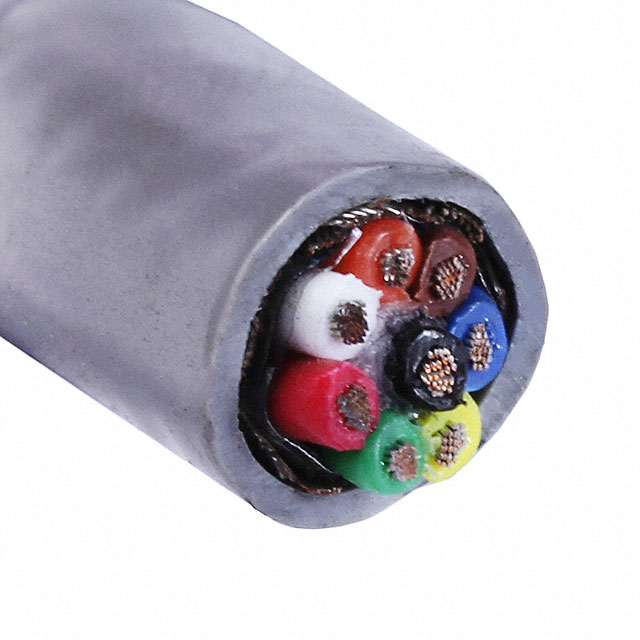

CABLE 8COND 20AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 8COND 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C1648A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	8.03 mm
Jacket (Insulation) Diameter [diameter]	0.316 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.737 mm
Jacket (Insulation) Thickness	0.029 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Shield Coverage	80 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Length [x]	Length [x]	Length	Length	Shield Coverage	Conductor Strand	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Wire Gauge	Number of Conductors	Shield Type	Conductor Material	Jacket Color	Voltage	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Prysmian Group C1648A.41.10	500 '	152.4 m	1000 ft	304.8 m	80 % 100 %	26 34 AWG	Copper Flexfoil® Tinned	0.737 mm	0.029 in	Communication Control	20 AWG	8	Braid Foil	Copper Tinned	Gray	300 V	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	Multi-Conductor	8.03 mm	0.316 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Gray 20 AWG Foil, Braid 1000.0' (304.8m)
