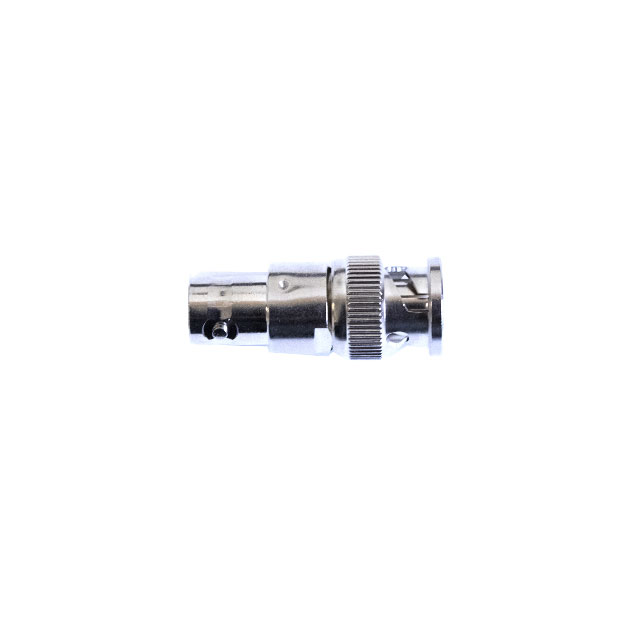

BU-P5300
ActiveMueller Electric Co
CONN BNC-TRIAXIAL ADAPTER 0HZ TO 500MHZ ST RCP/PL GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU-P5300
ActiveMueller Electric Co
CONN BNC-TRIAXIAL ADAPTER 0HZ TO 500MHZ ST RCP/PL GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-P5300 |
|---|---|
| Adapter Series | BNC to BNC Triaxial |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper, Brass |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Triaxial Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 500 MHz |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-P53 Series
Adapter Coaxial Connector BNC Triaxial Plug, Male Pin To BNC Jack, Female Socket
