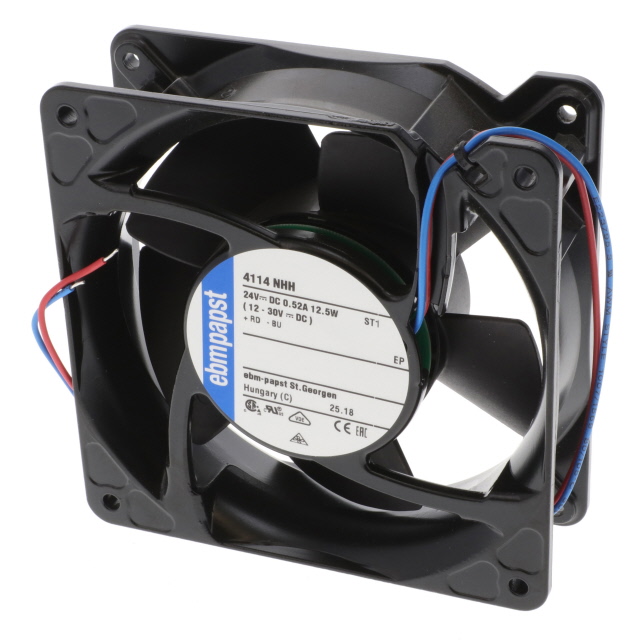

4114NHH

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 16V TO 30V 153.03CFM 60DB 119 X 119 X 38MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4114NHH

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 16V TO 30V 153.03CFM 60DB 119 X 119 X 38MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4114NHH

Air Flow	153 CFM
Air Flow	4.28 m³/min
Approval Agency	CE
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	65 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12.4 W
RPM	5000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	16 VDC
Width [y]	38 mm

4114N Series

DC Fans Tubeaxial Fan, 119x119x38mm, 24VDC, 274CFM, 90W, 77dBA, 9500RPM, Ball, S-Force

Part	Voltage - Rated	Fan Type	Width [y]	Termination	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Power (Watts)	Noise	Material - Blade	Features	Voltage Range [Min]	Voltage Range [Max]	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Air Flow	Air Flow	Bearing Type	Weight	Weight	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Approval Agency	Ingress Protection	Operating Temperature [Max]
ebm-papst Inc. 4114N/2H5	24 VDC	Tubeaxial	38 mm	3 Wire Leads	119 mm	119 mm	62500 Hrs	45 W	60 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	Locked Rotor Protection Speed Sensor (Tach)	16 VDC	30 V	7500 RPM	-20 °C	-20 C	65 °C	65 °C	Aluminum	230 CFM	6.44 m³/min	Ball
ebm-papst Inc. 4114NXH	24 VDC	Tubeaxial	38 mm	2 Wire Leads	119 mm	119 mm	70000 Hrs	11 W	57 dB	Fiberglass Reinforced Nylon Polyamide (PA)		12 VDC	28 VDC	4400 RPM					Aluminum	139.5 CFM	3.91 mł/min	Ball	0.86 lb	390.09 g	-30 °C	-22 °F	70 °C	158 °F
ebm-papst Inc. 4114N/2HH	24 VDC	Tubeaxial	38 mm	3 Wire Leads	119 mm	119 mm	70000 Hrs	12.4 W	67 dB	Fiberglass Reinforced Nylon Polyamide (PA)	Speed Sensor (Tach)	16 VDC	30 V	5000 RPM	-20 °C	-20 C	65 °C	65 °C	Aluminum	153 CFM	4.28 m³/min	Ball
ebm-papst Inc. 4114N/2HU-272	24 VDC	Tubeaxial	38 mm	2 Wire Leads	119 mm	119 mm		11 W	57 dB	Fiberglass Reinforced Nylon Polyamide (PA)		12 VDC	25 VDC	4400 RPM	-20 °C	-20 C	55 °C	55 °C	Aluminum	140 CFM	3.92 mł/min	Ball	0.882 lb	400.07 g					UL	IP68 - Dust Tight Waterproof
ebm-papst Inc. 4114NHH	24 VDC	Tubeaxial	38 mm	2 Wire Leads	119 mm	119 mm	70000 Hrs	12.4 W	65 dB	Fiberglass Reinforced Nylon Polyamide (PA)		16 VDC	30 V	5000 RPM	-20 °C	-20 C	65 °C	65 °C	Aluminum	153 CFM	4.28 m³/min	Ball							CE
ebm-papst Inc. 4158N/2H7P
ebm-papst Inc. 4158N/2H8P
ebm-papst Inc. 4154N/2H7P	24 VDC	Tubeaxial	38 mm	2 Wire Leads	119 mm	119 mm	97500 Hrs	90 W	77 dB	Nylon Polyamide (PA)		16 VDC	30 V	9500 RPM	-20 °C	-20 C		75 ░C	Aluminum	274 CFM	7.67 mł/min	Ball									75 °C
ebm-papst Inc. 4114NHU-295	24 VDC	Tubeaxial	38 mm	2 Wire Leads	119 mm	119 mm		11 W	57 dB	Fiberglass Reinforced Nylon Polyamide (PA)		16 VDC	30 V	4400 RPM	-20 °C	-20 C	55 °C	55 °C	Aluminum	140 CFM	3.92 mł/min	Ball	0.882 lb	400.07 g					UL	IP68 - Dust Tight Waterproof
ebm-papst Inc. 4114N/17H-265	24 VDC	Tubeaxial	38 mm	3 Wire Leads	119 mm	119 mm			70 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	Alarm Sensor	16 VDC	30 V						Aluminum			Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.75
		10	$ 72.57
		25	$ 71.55
		50	$ 66.95
		100	$ 65.42

Description

General part information

4114N Series

DC Fans Tubeaxial Fan, 119x119x38mm, 24VDC, 274CFM, 90W, 77dBA, 9500RPM, Ball, S-Force
