3182-2SG-3DC

Active

Conxall/Switchcraft

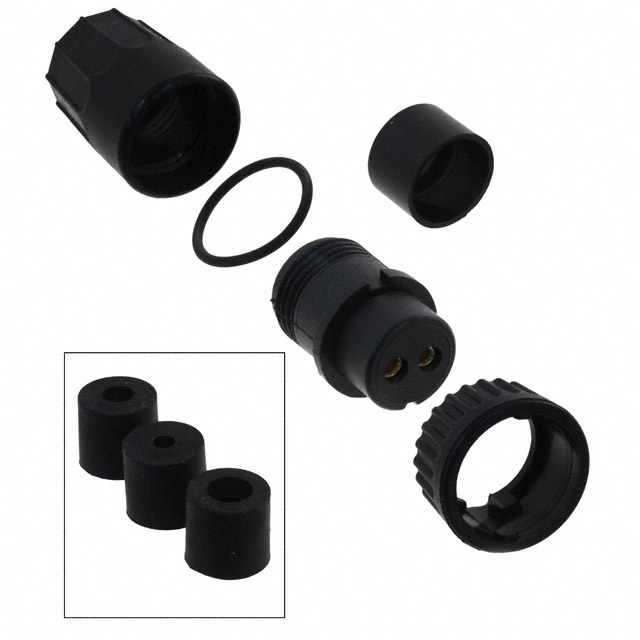

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3182-2SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3182-2SG-3DC

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3182-2S Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Contact Finish - Mating	Contact Material	Connector Type	Orientation	Backshell Material, Plating	Fastening Type	Features	Color	Voltage Rating	Ingress Protection	Primary Material	Shielding	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3182-2SG-515	-40 °C	115 °C	0.15 in 0.17 in	3.81 mm 4.32 mm	2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell Cable Clamp	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)
Conxall/Switchcraft 3182-2SG-330	-40 °C	115 °C			2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3182-2SG-328	-40 °C	115 °C			2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)	7.11 mm	0.29 in		0.28 in	7.37 mm
Conxall/Switchcraft 3182-2SG-530	-40 °C	115 °C			2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell Cable Clamp	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3182-2SG-3DC	-40 °C	115 °C			2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)
Conxall/Switchcraft 3182-2SG-318	-40 °C	115 °C			2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)						4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3182-2SG-315	-40 °C	115 °C	0.15 in 0.17 in	3.81 mm 4.32 mm	2	Gold	Brass	Female Sockets Plug	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Backshell	Black	600 V	Weathertight	Plastic	Unshielded	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.07
		10	$ 13.35
		25	$ 12.84
		50	$ 12.33
		100	$ 11.64
		300	$ 10.61
		500	$ 9.93
		1000	$ 9.11

Description

General part information

3182-2S Series

2 Position Circular Connector Plug, Female Sockets Solder Cup
