315-040-500-204
ActiveEDAC Inc.

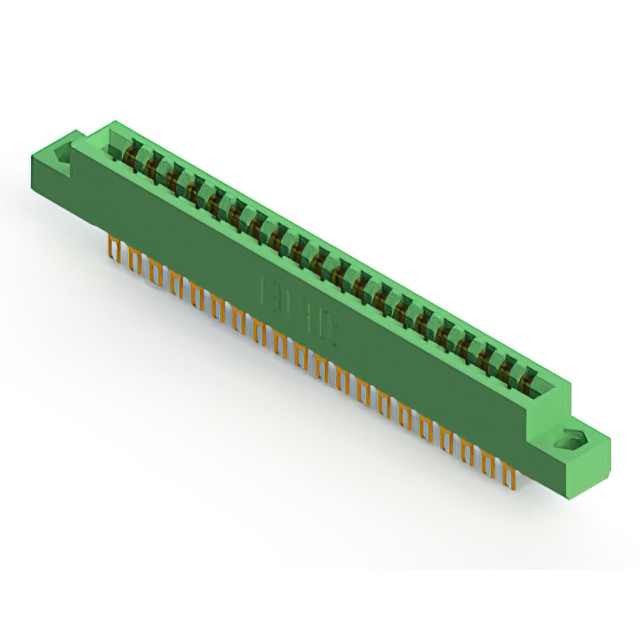

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
315-040-500-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 315-040-500-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
315-040 Series
| Part | Termination Rows | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Gender | Flange Feature | Number of Rows | Number of Positions | Material - Insulation | Termination | Color | Pitch [x] | Pitch [x] | Card Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder Eyelet(s) | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | ||||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | Board Edge Straddle Mount | |||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | Flush Mount M3 Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder Eyelet(s) | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | ||||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | Board Edge Straddle Mount | |||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | Flush Mount Top Opening Unthreaded | 2 | 40 | Polyester Thermoplastic | Solder Eyelet(s) | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | 3.96 mm | 0.156 in | ||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | Board Edge Straddle Mount | |||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder Eyelet(s) | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | ||||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | Flush Mount Top Opening Unthreaded | 2 | 40 | Polyester Thermoplastic | Solder | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | Board Edge Straddle Mount | 3.25 mm | 0.128 " | Card Extender |
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 40 | Polyester Thermoplastic | Solder | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | Board Edge Straddle Mount | |||
EDAC Inc. | 2 | Dual | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | Floating Bobbin Flush Mount | 2 | 40 | Polyester Thermoplastic | Solder | Green | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 10 Áin | 0.25 Ám | 20 | 20 | 20 | Gold | Panel Mount Through Hole | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
315-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
