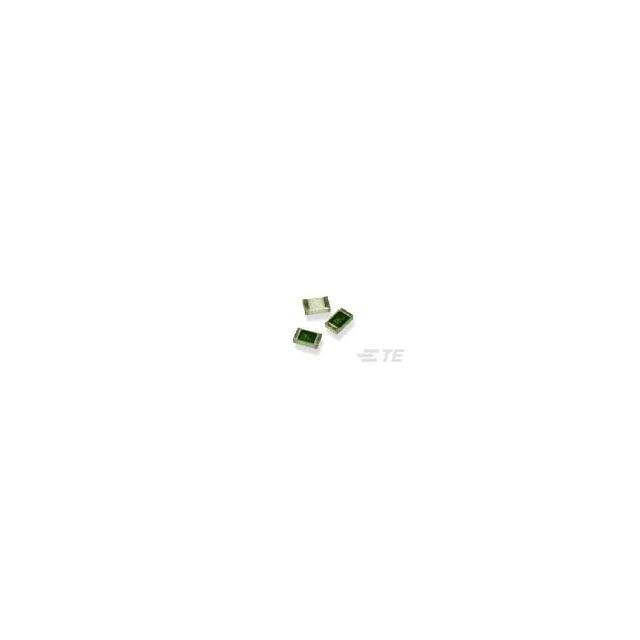

1-1614894-9
ActiveTE Connectivity Passive Product
RES 274K OHM 0.1% 1/10W 0805 1K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1614894-9
ActiveTE Connectivity Passive Product
RES 274K OHM 0.1% 1/10W 0805 1K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1614894-9 |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Resistance | 274 kOhms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 0.13 | |
Description
General part information
1614894 Series
274 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film
