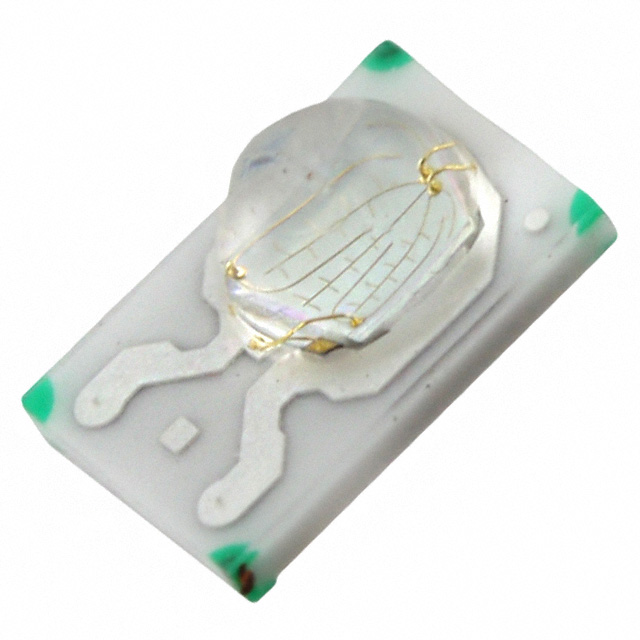

ELSH-E71B1-0LPNM-CB7B8
ActiveEverlight Electronics Co Ltd
SINGLE COLOR LED, BLUE, T-1, 2.4MM, ROHS COMPLIANT, SMT, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELSH-E71B1-0LPNM-CB7B8
ActiveEverlight Electronics Co Ltd
SINGLE COLOR LED, BLUE, T-1, 2.4MM, ROHS COMPLIANT, SMT, 2 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELSH-E71B1-0LPNM-CB7B8 |
|---|---|
| Color | Blue |
| Current - Max [Max] | 600 mA |
| Current - Test | 350 mA |
| Lumens/Watt @ Current - Test | 15 lm/W |
| Luminous Flux @ Current/Temperature | 19 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3246 Metric, 1218 |
| Size / Dimension [x] | 3.05 mm |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [y] | 0.177 " |
| Size / Dimension [y] | 4.5 mm |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [diameter] | 10 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.25 V |
| Wavelength | 465 nm |
| Wavelength [Max] | 470 nm |
| Wavelength [Min] | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.06 | |
| Digi-Reel® | 1 | $ 4.06 | ||
| Tape & Reel (TR) | 1200 | $ 1.82 | ||
| 2000 | $ 1.74 | |||
Description
General part information
ELSH-E71 Series
LED Lighting Color SHUEN Blue 465nm (460nm ~ 470nm) 1218 (3246 Metric)
