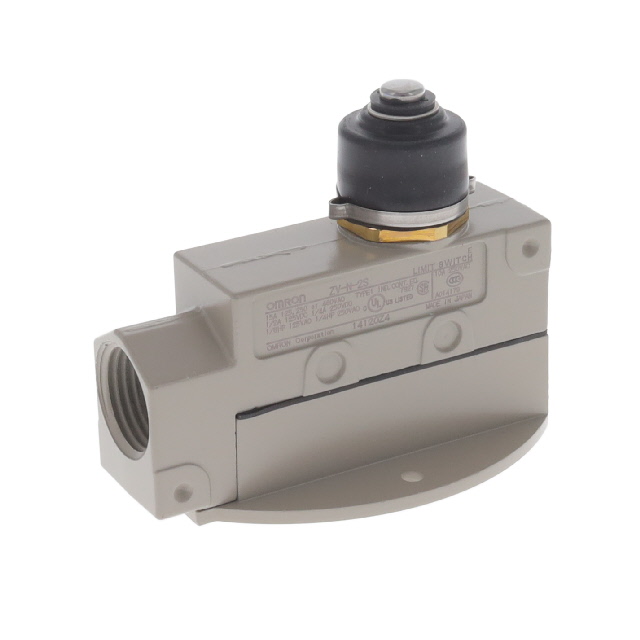

ZV-N-2S
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
ZV-N-2S
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZV-N-2S |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA, 15 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 500000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 800 gf |
| Operating Position | 71.4 mm |
| Operating Position | 2.811 in |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 5 mm |
| Overtravel | 0.197 " |
| Pretravel | 2 mm |
| Pretravel | 0.08 in |
| Release Force | 240 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.88 | |
| 10 | $ 70.28 | |||
| 25 | $ 65.18 | |||
| 50 | $ 61.58 | |||
| 100 | $ 58.27 | |||
Description
General part information
ZV-N Series
Switch SPDT Chassis Mount
