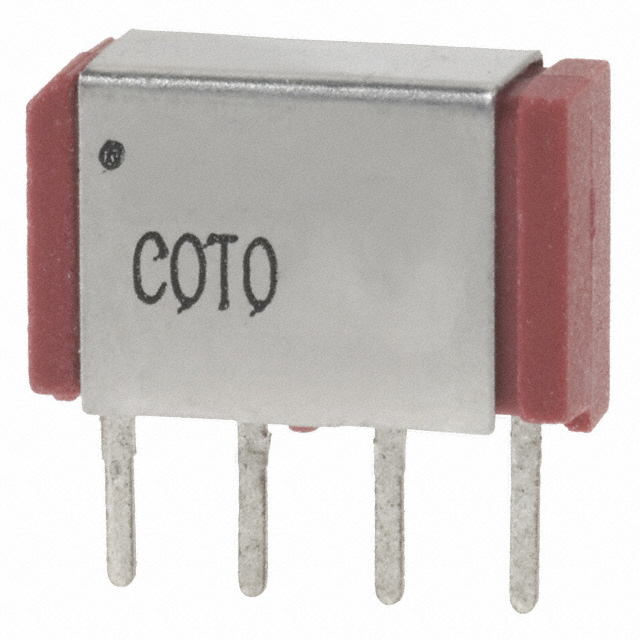

REED RELAY, SPST-NO, 5 VDC, 9011 SERIES, THROUGH HOLE, 500 OHM, 250 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9011-05-11

Active

Coto Technology

REED RELAY, SPST-NO, 5 VDC, 9011 SERIES, THROUGH HOLE, 500 OHM, 250 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9011-05-11

Coil Current	10 mA
Coil Resistance	500 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	250 mA
Features	EMI Shielded, Diode
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.4 VDC
Operate Time	0.35 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	0.1 ms
Switching Voltage	100 VAC, 100 VDC
Termination Style	PC Pin

9011 Series

Part	Coil Resistance	Operate Time	Contact Form	Coil Type	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Coil Voltage	Release Time	Contact Rating (Current)	Mounting Type	Must Release Voltage	Must Operate Voltage	Coil Current
Coto Technology 9011-05-11	500 Ohms	0.35 ms	SPST-NO (1 Form A)	Non Latching	100 VAC 100 VDC	85 °C	-20 C	Diode EMI Shielded	PC Pin	5 VDC	0.1 ms	250 mA	Through Hole	0.4 VDC	3.75 VDC	10 mA
Coto Technology 9011-12-10	750 Ohms	0.35 ms	SPST-NO (1 Form A)	Non Latching	100 VAC 100 VDC	85 °C	-20 C	EMI Shielded	PC Pin	12 VDC	0.1 ms	250 mA	Through Hole	1 VDC	9 VDC	16 mA
Coto Technology 9011-05-10	500 Ohms	0.35 ms	SPST-NO (1 Form A)	Non Latching	100 VAC 100 VDC	85 °C	-20 C	EMI Shielded	PC Pin	5 VDC	0.1 ms	250 mA	Through Hole	0.4 VDC	3.75 VDC	10 mA
