031-6294

Active

Amphenol RF

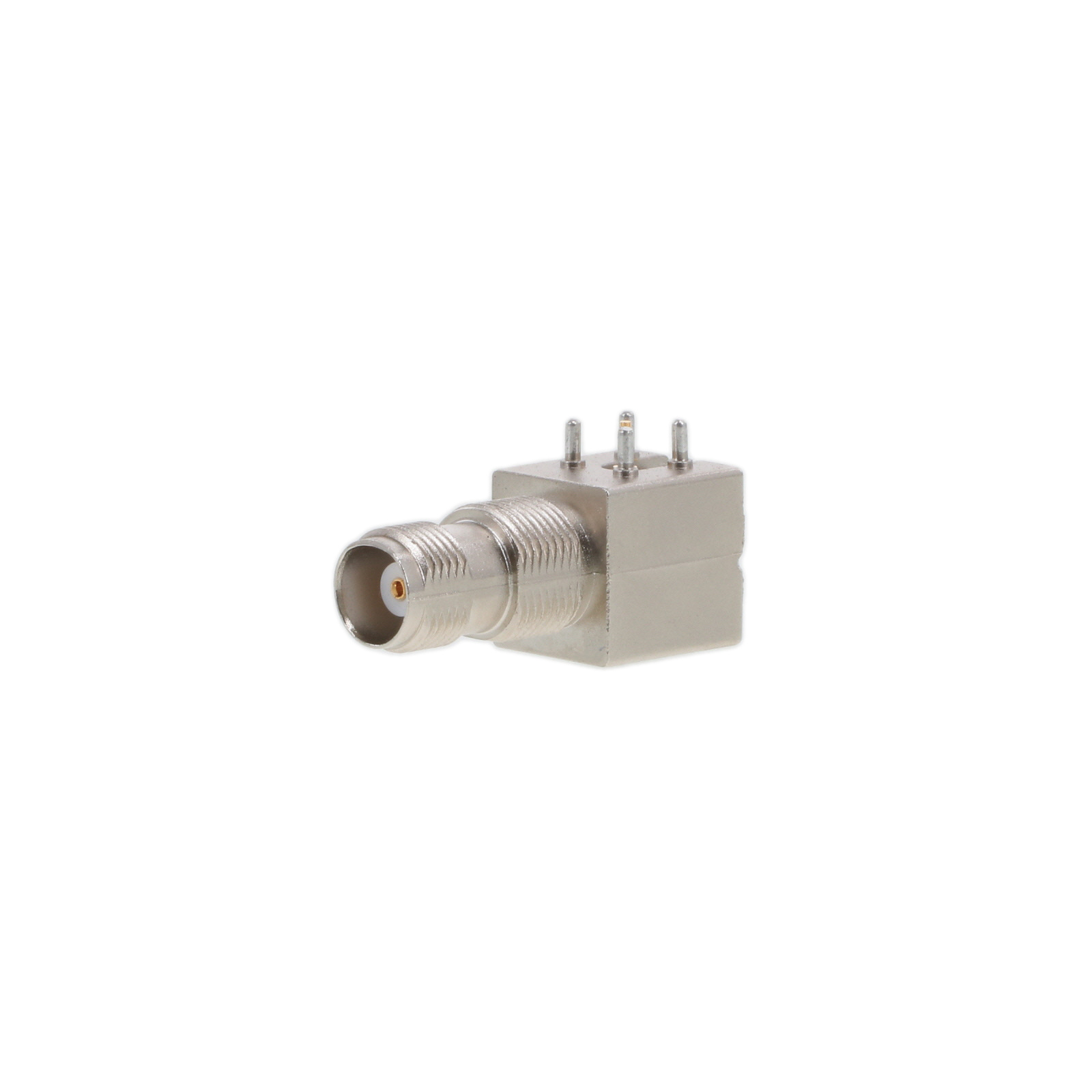

CONN TNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-6294

Active

Amphenol RF

CONN TNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6294

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

031-62 Series

Part	Center Contact Plating	Body Material	Mating Cycles	Cable Group	Cable Group [Min]	Cable Group [Max]	Dielectric Material	Center Contact Material	Shield Termination	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mounting Feature	Impedance	Includes	Frequency - Max [Max]	Body Finish	Voltage Rating	Contact Termination	Ingress Protection	Connector Type	Connector Style	Mounting Type	Fastening Type	Insertion Loss
Amphenol RF 031-6288	Gold	Brass	500	RG-405 Semi Rigid	0.085 in	0.086 in	Polytetrafluoroethylene (PTFE)	Phosphor Bronze	Solder	1	85 °C	-40 °C	Silver	Bulkhead - Front Side Nut	50 Ohms	1 Connector 1 Contact 1 Lockwasher 1 Nut	6000 MHz	Nickel	500 V	Solder	IP67 - Dust Tight Waterproof	Female Socket Jack	TNC
Amphenol RF 031-6212	Gold	Brass	500	188 188A 316 LMR-100 M17/119-RG174 RG-174			Polytetrafluoroethylene (PTFE)	Phosphor Bronze	Crimp	1	85 °C	-40 °C	Silver	Bulkhead - Rear Side Nut	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	3 GHz	Nickel	500 V	Crimp Solder	IP67 - Dust Tight Waterproof	Female Socket Jack	TNC
Amphenol RF 031-6219	Gold	Brass	500	1.13mm Coaxial Cable			Polytetrafluoroethylene (PTFE)	Phosphor Bronze	Crimp	1	85 °C	-40 °C	Silver	Bulkhead - Rear Side Nut	50 Ohms	1 Bushing 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	3 GHz	Nickel	500 V	Solder	IP67 - Dust Tight Waterproof	Jack Male Pin	RP-TNC
Amphenol RF 031-6233	Gold	Zinc Die Cast	500				Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	1	165 °C	-65 ░C	Silver	Bulkhead - Front Side Nut	50 Ohms	1 Connector 1 Lockwasher 1 Nut	3 GHz	Nickel	500 V	Solder		Female Socket Jack	BNC	Board Edge End Launch Panel Mount	Bayonet Lock	0.2 dB
Amphenol RF 031-6240-3	Gold	Zinc Alloy					Polybutylene Terephthalate (PBT) Polytetrafluoroethylene (PTFE)	Brass	Solder	1	165 °C	-65 ░C	Silver	Bulkhead - Front Side Nut	50 Ohms		1 GHz	Tin	500 V	Solder		Jack Male Pin	RP-TNC	Panel Mount Right Angle Through Hole
Amphenol RF 031-6213	Gold	Brass	500	188 188A 316 LMR-100 M17/119-RG174 RG-174			Polytetrafluoroethylene (PTFE)	Phosphor Bronze	Crimp	1	85 °C	-40 °C	Silver	Bulkhead - Rear Side Nut	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	3 GHz	Nickel	500 V	Crimp Solder	IP67 - Dust Tight Waterproof	Jack Male Pin	RP-TNC
Amphenol RF 031-6294	Gold	Zinc Die Cast	500				Polybutylene Terephthalate (PBT) Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	1	155 °C	-40 °C	Silver	Bulkhead - Front Side Nut	50 Ohms		11 GHz	Nickel	500 V	Solder		Female Socket Jack	TNC	Panel Mount Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.85
		10	$ 9.76
		25	$ 9.20
		50	$ 8.96
		240	$ 7.78
		480	$ 7.31
		1200	$ 6.46

Description

General part information

031-62 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

No documents available
