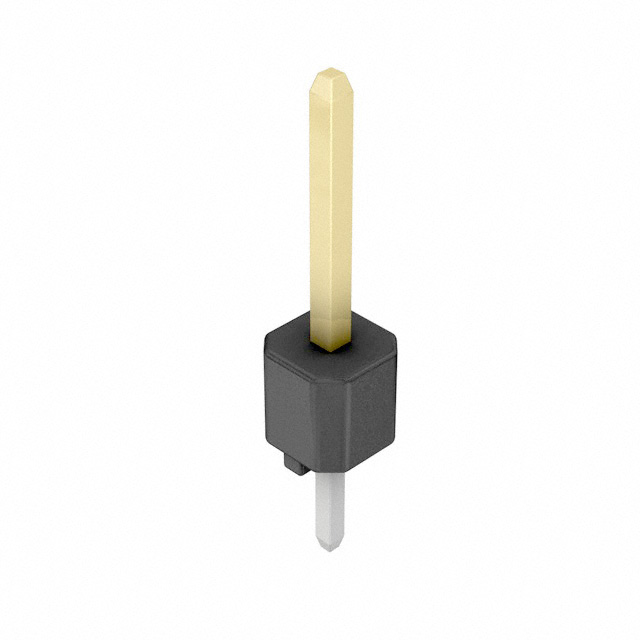

A2-1PA-2.54DSA(71)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 1POS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 1POS

Technical Specifications

Parameters and characteristics for this part

Specification	A2-1PA-2.54DSA(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.54 mm
Overall Contact Length	0.454 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

Part	Termination	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Material	Mounting Type	Fastening Type	Insulation Color	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Number of Rows	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Style	Number of Positions	Number of Positions Loaded	Connector Type	Voltage Rating	Insulation Height [custom]	Insulation Height [custom]
Hirose Electric USA, Inc. A2-1PA-2.54DSA(71)	Solder	UL94 V-0	Unshrouded	6 mm	0.236 in	Brass	Through Hole	Push-Pull	Black	3 A	2 çm	78.7 çin	Polybutylene Terephthalate (PBT)	Square	1	0.1 in	2.54 mm	85 °C	-55 °C	0.203 Ám	8 Áin	Tin	Male Pin	0.118 in	3 mm	11.54 mm	0.454 in	Gold	Board to Board Cable	1	All	Header	200 V
Hirose Electric USA, Inc. A2-1PA-2.54DS(71)	Solder	UL94 V-0	Unshrouded	6 mm	0.236 in	Brass	Through Hole Right Angle	Push-Pull	Black	3 A	2 çm	78.7 çin	Polybutylene Terephthalate (PBT)	Square	1			85 °C	-55 °C	0.203 Ám	8 Áin	Tin	Male Pin	0.138 in	3.5 mm			Gold	Board to Board Cable	1	All	Header	200 V	0.157 in	4 mm
