BU-1120-A-24-0

Active

Mueller Electric Co

TEST LEAD, 4MM BANANA PLUG TO HOOK CLIP, BLACK, 300 V, 5 A, 609.6 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-1120-A-24-0

Active

Mueller Electric Co

TEST LEAD, 4MM BANANA PLUG TO HOOK CLIP, BLACK, 300 V, 5 A, 609.6 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-1120-A-24-0

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	24 "
Cable Length	609.6 mm
Configuration	Banana to Grabber, Hook
Contents	1 Lead, Black
Current Rating (Amps)	5 A
Material - Insulation	Nylon, Poly-Vinyl Chloride (PVC)
Ratings	300 V
Ratings	CAT II
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	300 V
Wire Gauge	20 AWG

BU-1120 Series

Part	Wire Gauge	Material - Insulation	Voltage - Rated	2nd Connector	Stacking Method	Configuration	1st Connector	Contents	Type	Cable Length	Cable Length	Ratings	Ratings	Current Rating (Amps)	Contents [custom]
Mueller Electric Co BU-1120-A-12-0	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	1 Lead Black	Patch Cord	12 in	304.8 mm	300 V	CAT II	5 A
Mueller Electric Co BU-1120-A-12-2	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	Red	Patch Cord	12 in	304.8 mm	300 V	CAT II	5 A	1
Mueller Electric Co BU-1120-A-48-0	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	1 Lead Black	Patch Cord	48 in	1219.2 mm	300 V	CAT II	5 A
Mueller Electric Co BU-1120-A-60-2	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	Red	Patch Cord	5 ft	1524 mm	300 V	CAT II	5 A	1
Mueller Electric Co BU-1120-A-36-2	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	Red	Patch Cord	36 in	914.4 mm	300 V	CAT II	5 A	1
Mueller Electric Co BU-1120-A-24-0	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	1 Lead Black	Patch Cord	24 "	609.6 mm	300 V	CAT II	5 A
Mueller Electric Co BU-1120-A-24-2	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	Red	Patch Cord	24 "	609.6 mm	300 V	CAT II	5 A	1
Mueller Electric Co BU-1120-A-48-2	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	Red	Patch Cord	48 in	1219.2 mm	300 V	CAT II	5 A	1
Mueller Electric Co BU-1120-A-36-0	20 AWG	Nylon Poly-Vinyl Chloride (PVC)	300 V	Mini Hook	Front and Vertical Multi-Stacking	Banana to Grabber Hook	Banana Plug Single Stackable	1 Lead Black	Patch Cord	36 in	914.4 mm	300 V	CAT II	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.94
		10	$ 8.10
		100	$ 7.72
		500	$ 7.47
		1000	$ 7.35
Newark	Each	100	$ 11.18

Description

General part information

BU-1120 Series

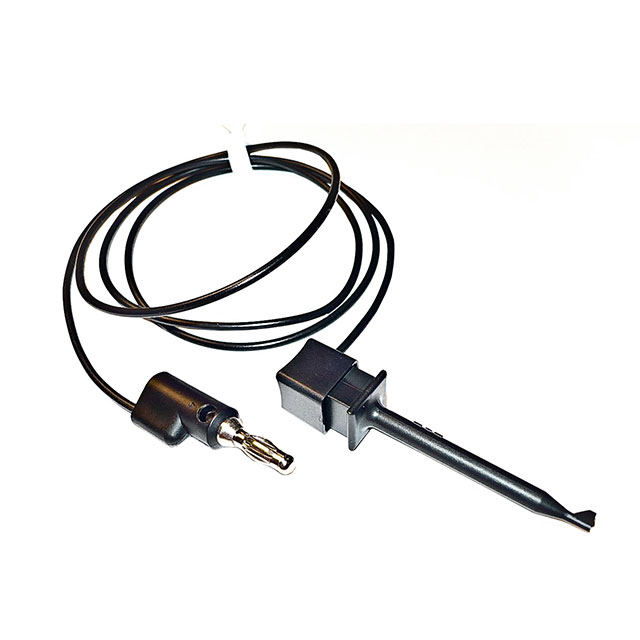

BU-1120-A black colored test lead with a miniature plunger clip to an overmolded, stackable 4mm banana plug.
