09140063101XL

Active

HARTING Technology Group

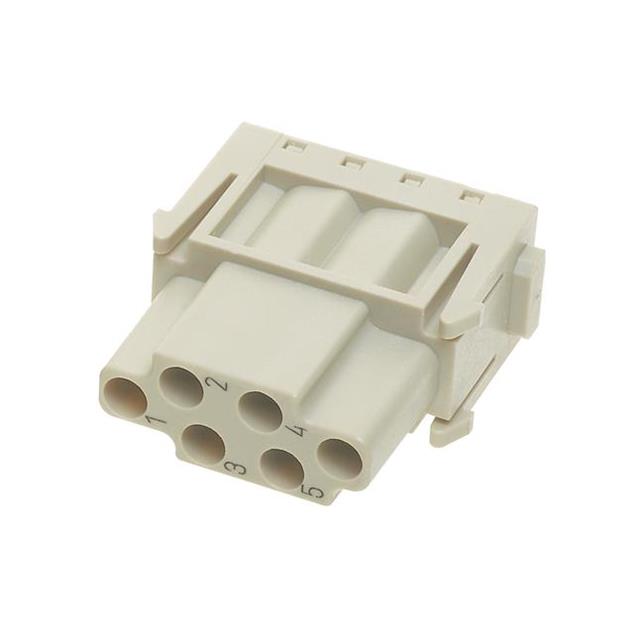

HAN E 6PIN MODULE FEMALE CRIMP (200 PIECE BULK PACKAGING)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN E 6PIN MODULE FEMALE CRIMP (200 PIECE BULK PACKAGING)

Technical Specifications

Parameters and characteristics for this part

Specification	09140063101XL

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

Part	Housing Material	Contact Type	Gender	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Termination Style
HARTING Technology Group 09140063101XL	Polycarbonate (PC)	Han®	Female	600 V	125 °C	-40 °C	Gray	Module without Contacts	UL94 V-0	16 A	6	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts Gray 6 Position Crimp
