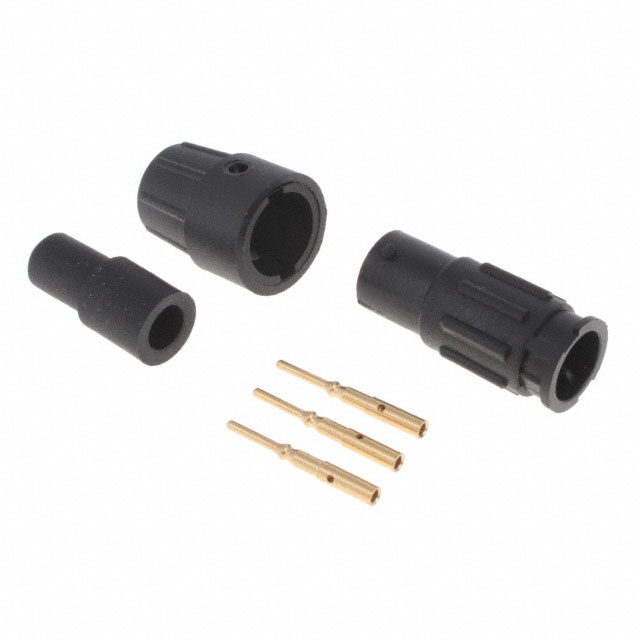

18280-3PG-318

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	18280-3PG-318

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Backshell Material, Plating	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Applications	Primary Material	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Orientation	Shielding	Cable Opening [custom]	Cable Opening [custom]	Features	Mounting Type	Termination	Voltage Rating	Color	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 18280-3PG-315	Thermoplastic	Gold	7.5 A	UL94 HB	Data Industrial Instrumentation Medical	Plastic	Copper Alloy	Male Pins Receptacle	85 °C	-40 °C	Bayonet Lock	Keyed	Unshielded	0.15 in 0.17 in	3.81 mm 4.32 mm	Backshell	Free Hanging (In-Line)	Crimp	600 VAC	Black	IP67 - Dust Tight Waterproof
Conxall/Switchcraft 18280-3PG-318	Thermoplastic	Gold	7.5 A	UL94 HB	Data Industrial Instrumentation Medical	Plastic	Copper Alloy	Male Pins Receptacle	85 °C	-40 °C	Bayonet Lock	Keyed	Unshielded			Backshell	Free Hanging (In-Line)	Crimp	600 VAC	Black	IP67 - Dust Tight Waterproof	4.57 mm	0.18 in	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Crimp
