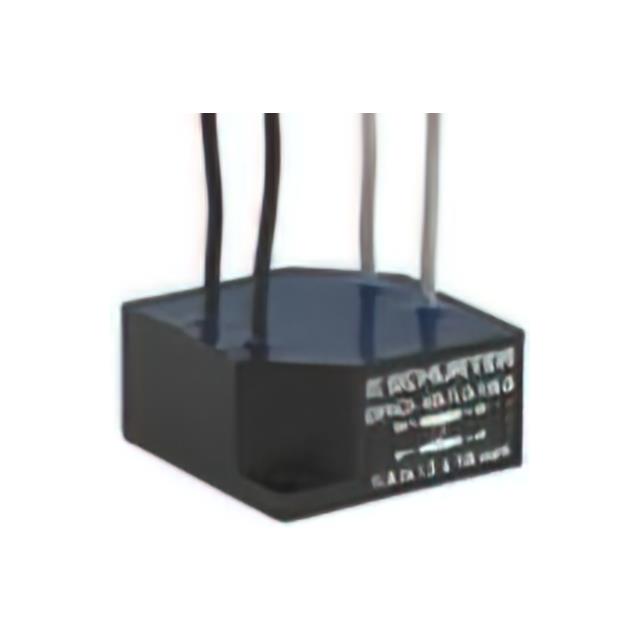

DFK-33-0002

Active

SCHURTER Inc.

CMC 3A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 3A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DFK-33-0002

Current Rating (Max) [Max]	3 A
DC Resistance (DCR) (Max) [Max]	150 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.299 in
Size / Dimension [y]	1.299 in
Size / Dimension [y]	33 mm

Part	Mounting Type	Package / Case	Operating Temperature [custom]	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
SCHURTER Inc. DFK-33-0002	Through Hole	Nonstandard	-25 °C 100 °C	2	3 A	150 mOhm	1.299 in	33 mm	1.299 in	33 mm
SCHURTER Inc. DFK-33-0001	Through Hole	Nonstandard	-25 °C 100 °C	2	2 A	250 mOhm	1.299 in	33 mm	1.299 in	33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 10.75

General part information

2 Line Common Mode Choke Through Hole 3A DCR 150mOhm
