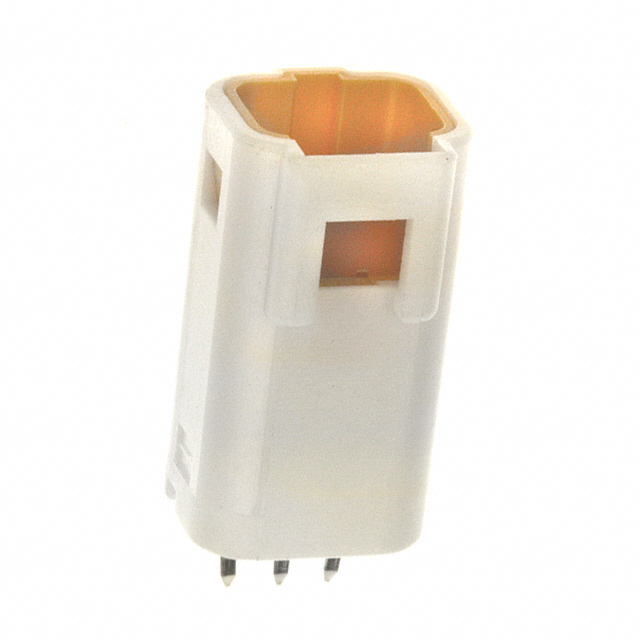

B03B-JWPF-SK-R
ActiveJST Sales America Inc.
CONN HEADER VERT 3POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
B03B-JWPF-SK-R
ActiveJST Sales America Inc.
CONN HEADER VERT 3POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B03B-JWPF-SK-R |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Ingress Protection | Dust Tight, Waterproof |
| Insulation Color | Natural |
| Insulation Height | 0.654 in |
| Insulation Height | 16.61 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mated Stacking Heights | 21 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 100 V |
