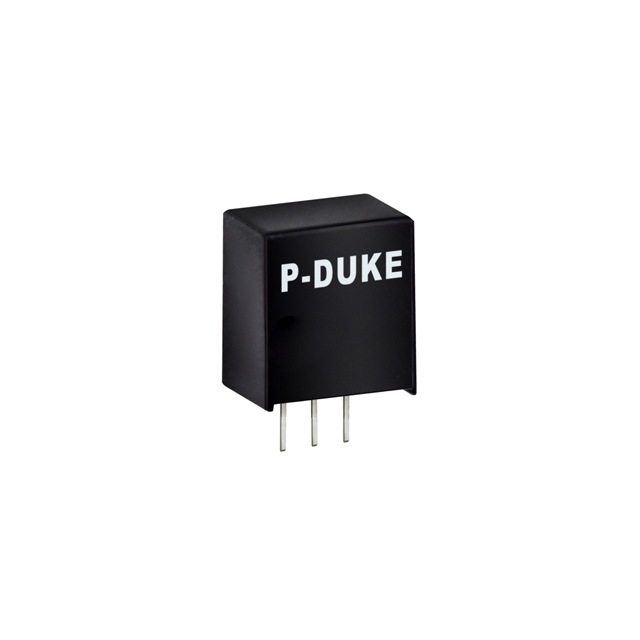

HSRP6-48S05
ActiveP-DUKE Technology
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSRP6-48S05
ActiveP-DUKE Technology
DC DC CONVERTER 5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSRP6-48S05 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 600 mA |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.47 in |
| Size / Dimension [y] | 8.6 mm |
| Size / Dimension [y] | 0.34 in |
| Size / Dimension [z] | 13.4 mm |
| Size / Dimension [z] | 0.53 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.87 | |
| 10 | $ 10.43 | |||
| 25 | $ 9.91 | |||
| 50 | $ 9.53 | |||
| 100 | $ 9.17 | |||
| 250 | $ 8.71 | |||
| 500 | $ 8.38 | |||
| 1000 | $ 8.06 | |||
Description
General part information
HSRP6 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5V 600mA 9V - 72V Input
