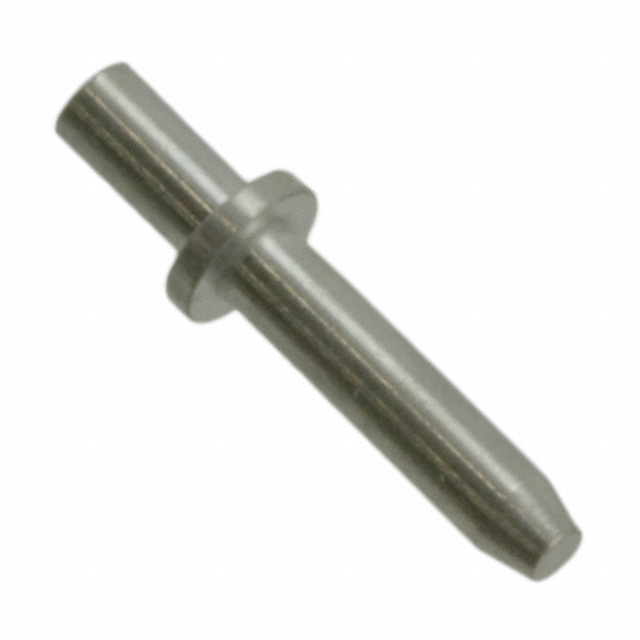

H2175-01

Active

Harwin Inc.

TERMINAL, TURRET, 1.14MM, NON INSULATED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

TERMINAL, TURRET, 1.14MM, NON INSULATED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2175-01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Insulation	Non-Insulated
Length - Above Flange	4.55 mm
Length - Above Flange [x]	0.179 in
Length - Below Flange [x]	0.082 in
Length - Below Flange [x]	2.08 mm
Length - Overall [x]	0.275 in
Length - Overall [x]	6.98 mm
Mounting Hole Diameter [Max]	0.045 "
Mounting Hole Diameter [Max]	1.14 mm
Mounting Hole Diameter [Min]	0.041 in
Mounting Hole Diameter [Min]	1.04 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.041 in
Pin Size - Above Flange [diameter]	1.04 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Material	Insulation	Length - Above Flange	Length - Above Flange [x]	Board Thickness	Board Thickness	Terminal Type	Terminal Style	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Type	Termination
Harwin Inc. H2175-05	0.045 "	1.14 mm	0.041 in	1.04 mm	0.275 in	6.98 mm	Gold	Brass	Non-Insulated	4.55 mm	0.179 in	1.6 mm	0.063 in	PC Pin	Single End	0.041 in	1.04 mm	0.082 in	2.08 mm	1.77 mm	0.07 in	Through Hole	Swage
Harwin Inc. H2175-01	0.045 "	1.14 mm	0.041 in	1.04 mm	0.275 in	6.98 mm	Tin	Brass	Non-Insulated	4.55 mm	0.179 in	1.6 mm	0.063 in	PC Pin	Single End	0.041 in	1.04 mm	0.082 in	2.08 mm	1.77 mm	0.07 in	Through Hole	Swage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Tin 0.041" (1.04mm) Dia
