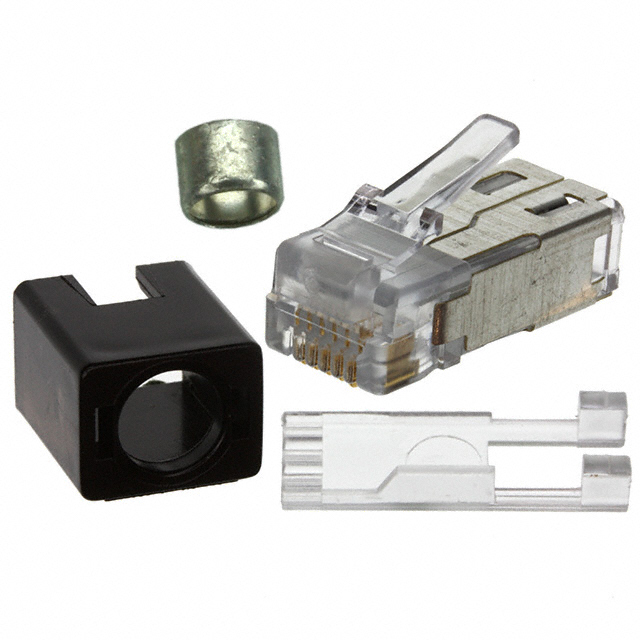

937-SP-360606-A151

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTORS / ETHERNET CONNECTORS MODULAR PLUG STANDARD 6P 6C SHIELDED .032-.038 CONDUCTORS

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTORS / ETHERNET CONNECTORS MODULAR PLUG STANDARD 6P 6C SHIELDED .032-.038 CONDUCTORS

Technical Specifications

Parameters and characteristics for this part

Specification	937-SP-360606-A151

Cable Type	Flat Oval Cable, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Features	Molded Boot
Housing Material	Polycarbonate (PC)
Length	26.57 mm
Length	1.046 in
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Shield Material	Brass
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

Part	Color	Length	Length	Connector Type	Housing Material	Features	Shielding	Voltage Rating	Contact Finish	Termination	Cable Type	Contact Material	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts	Shield Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
BEL MAGNETIC SOLUTIONS 937-SP-360606-A151	Translucent - Clear	26.57 mm	1.046 in	Plug	Polycarbonate (PC)	Molded Boot	Shielded	150 VDC	Gold	IDC	Flat Oval Cable Stranded Wires	Phosphor Bronze	1.5 A	50 µin	1.27 µm	6p6c (RJ11 RJ12 RJ14 RJ25)	Brass
BEL MAGNETIC SOLUTIONS 937-SP-361010-K1-A161	Translucent - Clear	26.57 mm	1.046 in	Plug	Polycarbonate (PC)	Keyed Molded Boot	Shielded	150 VDC	Gold	IDC	Flat Oval Cable Stranded Wires	Phosphor Bronze	1.5 A	50 µin	1.27 µm		Brass	10	10
BEL MAGNETIC SOLUTIONS 937-SP-360808-A161	Black Boot Translucent - Clear	26.57 mm	1.046 in	Plug	Polycarbonate (PC)	Molded Boot	Shielded	150 VDC	Gold	IDC	Flat Oval Cable Stranded Wires	Phosphor Bronze	1.5 A	50 µin	1.27 µm	8p8c (RJ45 Ethernet)	Brass
BEL MAGNETIC SOLUTIONS 937-SP-360808-A108	Translucent - Clear	26.57 mm	1.046 in	Plug	Polycarbonate (PC)	Molded Boot	Shielded	150 VDC	Gold	IDC	Flat Oval Cable Stranded Wires	Phosphor Bronze	1.5 A	50 µin	1.27 µm	8p8c (RJ45 Ethernet)	Brass
BEL MAGNETIC SOLUTIONS 937-SP-361010-A108	Translucent - Clear	26.57 mm	1.046 in	Plug	Polycarbonate (PC)		Shielded	150 VDC	Gold	IDC	Flat Oval Cable Stranded Wires	Phosphor Bronze	1.5 A	50 µin	1.27 µm		Brass	10	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Shielded IDC
