DF12-32DS-0.5V(86)

Obsolete

Hirose Electric USA, Inc.

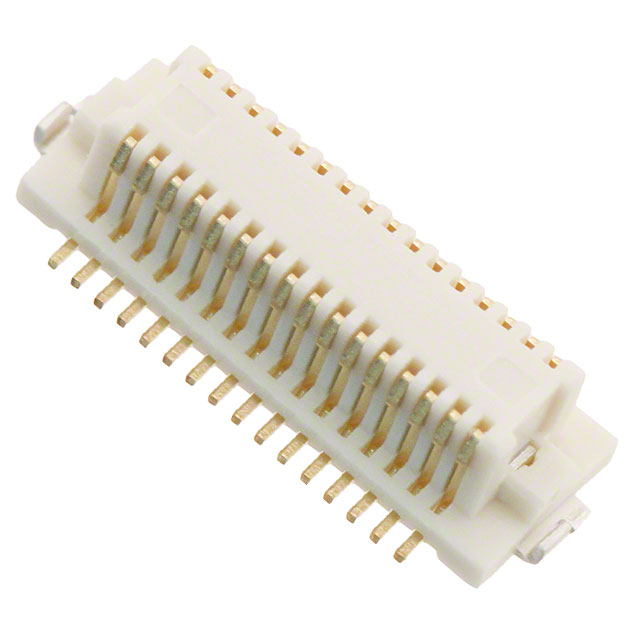

CONN RCPT 32POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF12-32DS-0.5V(86)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 32POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12-32DS-0.5V(86)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention, Board Guide
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Mated Stacking Heights	5 mm, 3.5 mm, 4 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF12 Series

Part	Number of Positions	Number of Rows	Contact Finish	Mated Stacking Heights	Features	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF12-30DS-0.5V(48)	30	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount
Hirose Electric USA, Inc. DF12-20DS-0.5V(80)	20	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount
Hirose Electric USA, Inc. DF12-36DS-0.5V(80)	36	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount
Hirose Electric USA, Inc. DF12-36DS-0.5V(86)	36	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	8 çin	0.203 çm
Hirose Electric USA, Inc. DF12-32DS-0.5V(86)		2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	8 çin	0.203 çm
Hirose Electric USA, Inc. DF12-40DS-0.5V(22)
Hirose Electric USA, Inc. DF12-30DS-0.5V(86)	30	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	8 çin	0.203 çm
Hirose Electric USA, Inc. DF12-30DS-0.5V(80)	30	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount
Hirose Electric USA, Inc. DF12-50DS-0.5V(80)	50	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount
Hirose Electric USA, Inc. DF12-30DS-0.5V(81)	30	2	Gold	3.5 mm 4 mm 5 mm	Board Guide Solder Retention	0.106 in	2.7 mm	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	8 çin	0.203 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF12 Series

32 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources
