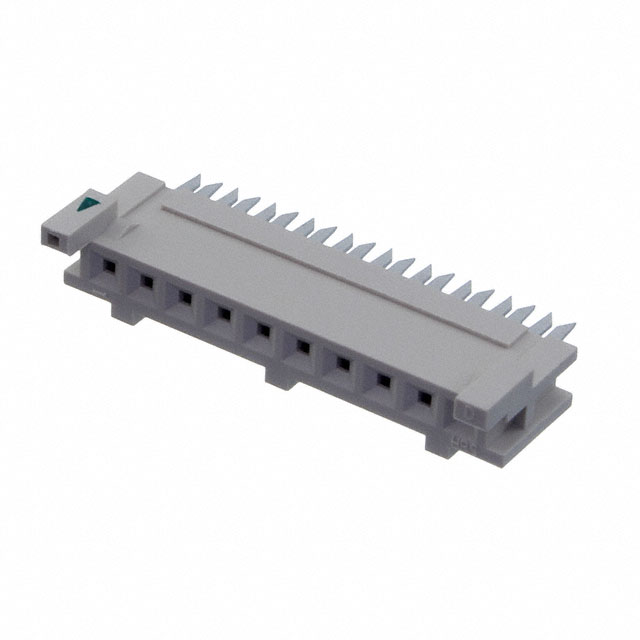

DF1-10S-2.5R24(05)
LTBHirose Electric USA, Inc.
CONN SOCKET 10POS IDC 24AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF1-10S-2.5R24(05)
LTBHirose Electric USA, Inc.
CONN SOCKET 10POS IDC 24AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF1-10S-2.5R24(05) |
|---|---|
| Cable Termination | IDC |
| Color | Brown |
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.23 | |
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.93 | |||
| 300 | $ 0.85 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.68 | |||
| 2500 | $ 0.62 | |||
Description
General part information
DF1-10S Series
10 Position Rectangular Socket Connector IDC Tin 24 AWG
