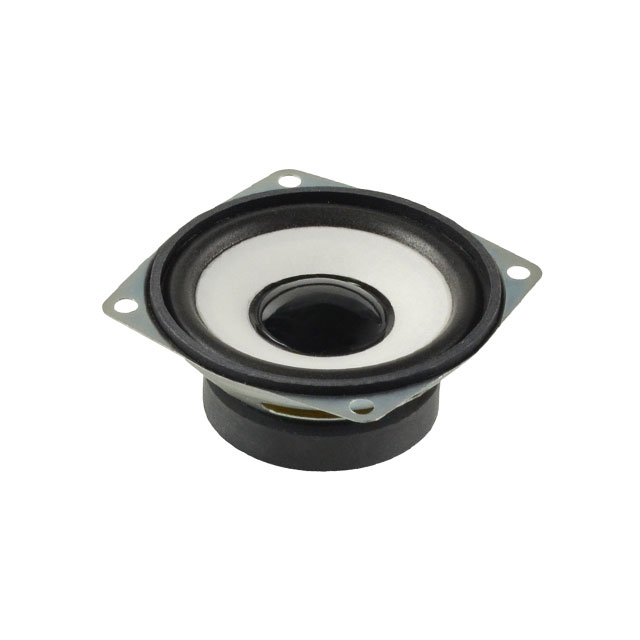

CSS-66668N
ActiveCUI Devices
SPEAKER 8OHM 3W TOP PORT 101DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSS-66668N
ActiveCUI Devices
SPEAKER 8OHM 3W TOP PORT 101DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSS-66668N |
|---|---|
| Efficiency - dBA | 101 dBA |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 200 Hz |
| Frequency Range [Max] | 15 kHz |
| Frequency Range [Min] | 160 Hz |
| Height - Seated (Max) [Max] [z] | 29 mm |
| Height - Seated (Max) [Max] [z] | 1.142 in |
| Impedance | 8 Ohms |
| Material - Cone | Foam, Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 4 W |
| Power - Rated | 3 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 2.598 in |
| Size / Dimension [x] | 66 mm |
| Size / Dimension [y] | 2.598 in |
| Size / Dimension [y] | 66 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.88 | |
| 10 | $ 3.16 | |||
| 25 | $ 2.92 | |||
| 40 | $ 2.80 | |||
| 80 | $ 2.63 | |||
| 230 | $ 2.40 | |||
| 440 | $ 2.27 | |||
| 945 | $ 2.16 | |||
Description
General part information
CSS-66668 Series
8 Ohms General Purpose Speaker 3 W 160 Hz ~ 15 kHz Top Round, Square Frame
