PC520-1C-24S-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 20A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

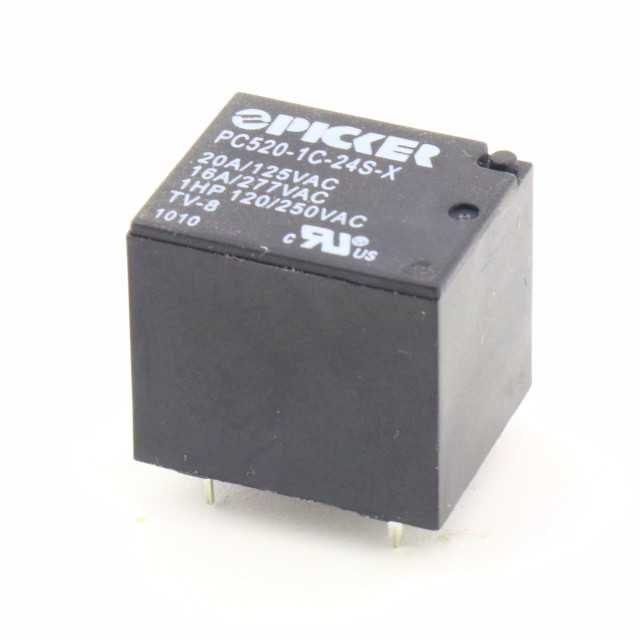

PC520-1C-24S-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 20A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC520-1C-24S-X |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 15 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching | 5000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.62 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.22 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.95 | |||
| 5000 | $ 0.91 | |||
Description
General part information
PC520-1C Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
