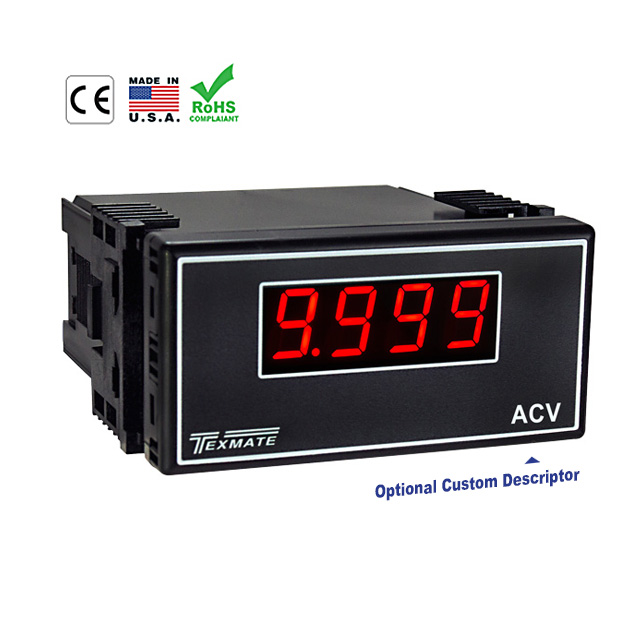

UM-40-ACV
ActiveTexmate
TRUERMS VOLT METER INDICATOR 0-7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM-40-ACV |
|---|---|
| Display Characters - Height [z] | 0.56 in |
| Display Characters - Height [z] | 14.22 mm |
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 700 VAC |
| Measuring Range [Min] | 0 VAC |
| Measuring Type | Voltage |
| Number of Characters Per Row | 4 |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 91 mm |
| Panel Cutout Dimensions [y] | 41.6 mm |
| Termination Style | Plug In Screw Terminals |
| Type | Voltmeter |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 120 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 363.00 | |
Description
General part information
UM-40 Series
Voltmeter LED - Red Characters Display Panel Mount
