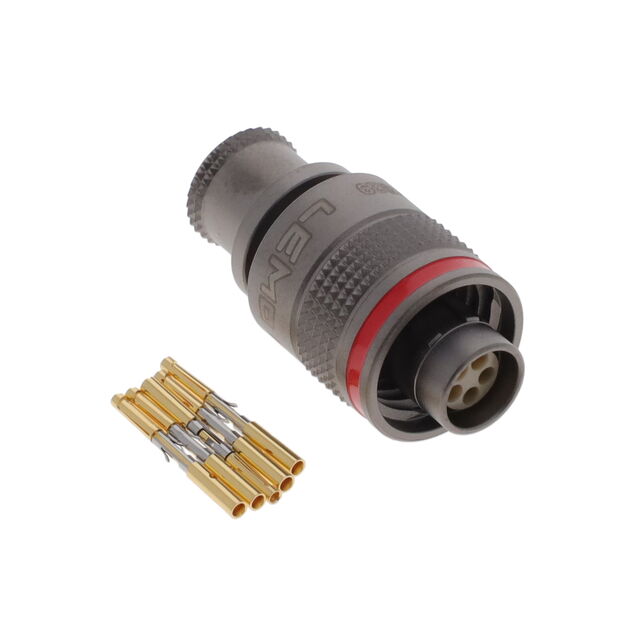

FMS.0M.305.XLMT

Active

LEMO

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FMS.0M.305.XLMT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [diameter]	8 mm
Cable Opening [diameter]	0.315 in
Color	Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	6.5 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	305
Shielding	Shielded
Termination	Crimp

Part	Shell Size - Insert	Features	Shell Material	Shell Finish	Contact Finish - Mating	Connector Type	Insert Material	Applications	Current Rating (Amps)	Termination	Shielding	Orientation	Mounting Type	Primary Material	Ingress Protection	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO FMS.0M.305.XLMT	305	Coupling Nut	Aluminum Alloy	Nickel	Gold	Female Sockets Plug	Polyetheretherketone (PEEK)	Aerospace Automotive Aviation Military	6.5 A	Crimp	Shielded	S	Free Hanging (In-Line)	Metal	IP68 - Dust Tight Waterproof	Bronze	8 mm	0.315 in	Gray	-55 °C	200 °C	59 Áin	1.5 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Crimp
