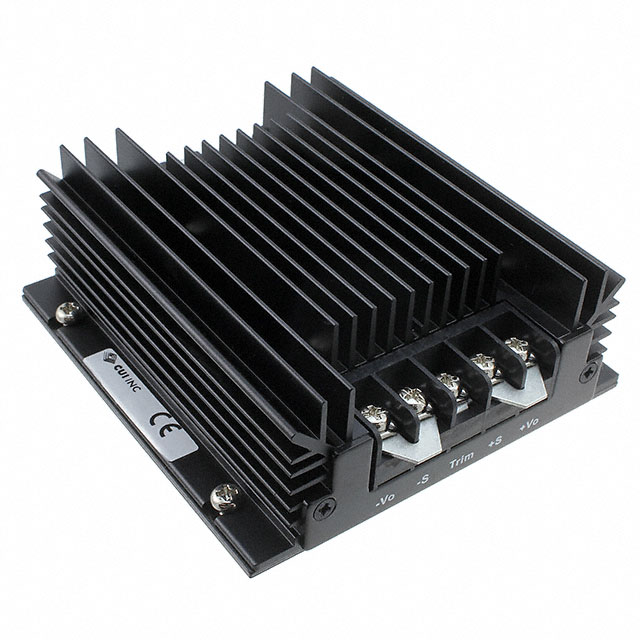

VHK75W-Q24-S24-DIN

Active

CUI Inc.

DC/DC DIN RAIL SUPPLY 24V 75W

Deep-Dive with AI

Search across all available documentation for this part.

VHK75W-Q24-S24-DIN

Active

CUI Inc.

DC/DC DIN RAIL SUPPLY 24V 75W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHK75W-Q24-S24-DIN

Approval Agency	CE
Current - Output (Max) [Max]	3.12 A
DC Voltage - Input (Max) [Max]	36 V
DC Voltage - Input (Min) [Min]	9 V
Efficiency	83 %
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	75 W
Size / Dimension [x]	4.23 "
Size / Dimension [x]	107.4 mm
Size / Dimension [y]	101.9 mm
Size / Dimension [y]	4.01 in
Size / Dimension [z]	52.6 mm
Size / Dimension [z]	2.07 in
Voltage - Output 1	24 V

VHK75W Series

Part	Current - Output (Max) [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Input Type	Number of Outputs	Efficiency	DC Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Type	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]
CUI Inc. VHK75W-Q24-S24-DIN	3.12 A	CE	85 °C	-40 °C	9 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	24 V	DC	1	83 %	36 V	75 W
CUI Inc. VHK75W-Q24-S24	3.12 A		85 °C	-40 °C		4.25 in		108 mm	4 "		1.5 "	24 V		1	83 %		75 W	Chassis Mount	Enclosed	36 V	38.1 mm	101.6 mm	9 V
CUI Inc. VHK75W-Q24-S5	15 A		85 °C	-40 °C		4.25 in		108 mm	4 "		1.5 "	5 V		1	80 %		75 W	Chassis Mount	Enclosed	36 V	38.1 mm	101.6 mm	9 V
CUI Inc. VHK75W-Q24-S48	1.56 A		85 °C	-40 °C		4.25 in		108 mm	4 "		1.5 "	48 V		1			75 W	Chassis Mount	Enclosed	36 V	38.1 mm	101.6 mm	9 V
CUI Inc. VHK75W-Q24-S12-DIN	6.25 A	CE	85 °C	-40 °C	9 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	12 V	DC	1	81.5 %	36 V	75 W
CUI Inc. VHK75W-Q48-S15-DIN	5 A	CE	85 °C	-40 °C	18 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	15 V	DC	1	83.5 %	75 V	75 W
CUI Inc. VHK75W-Q48-S12	6.25 A		85 °C	-40 °C		4.25 in		108 mm	4 "		1.5 "	12 V		1	82.5 %		75 W	Chassis Mount	Enclosed	75 V	38.1 mm	101.6 mm	18 V
CUI Inc. VHK75W-Q48-S48	1.56 A		85 °C	-40 °C		4.25 in		108 mm	4 "		1.5 "	48 V		1	84 %		75 W	Chassis Mount	Enclosed	75 V	38.1 mm	101.6 mm	18 V
CUI Inc. VHK75W-Q48-S3R3	15 A	CE	85 °C	-40 °C		4.25 in		108 mm	4 "		1.5 "	3.3 V		1	78 %		75 W	Chassis Mount	Enclosed	75 V	38.1 mm	101.6 mm	18 V
CUI Inc. VHK75W-Q24-S15-DIN	5 A	CE	85 °C	-40 °C	9 V	4.23 "	101.9 mm	107.4 mm	4.01 in	52.6 mm	2.07 in	15 V	DC	1	82.5 %	36 V	75 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 193.92
		5	$ 190.79
		10	$ 187.66
		32	$ 175.15

Description

General part information

VHK75W Series

DC/DC DIN RAIL SUPPLY 24V 75W

Documents

Technical documentation and resources

No documents available
