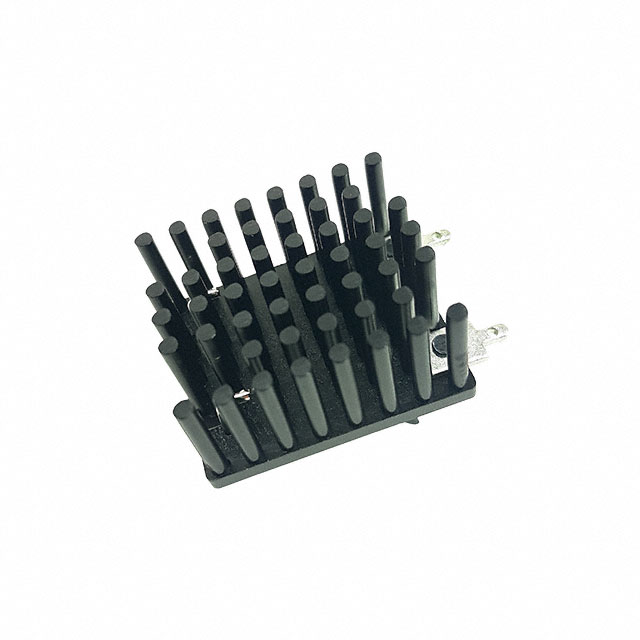

PA-T2X-38E

Active

Ohmite

HEATSINK: EXTRUDED; GRILLED; TO247,TO264; BLACK; L: 28.9MM; W: 30MM

Search across all available documentation for this part.

Active

Ohmite

HEATSINK: EXTRUDED; GRILLED; TO247,TO264; BLACK; L: 28.9MM; W: 30MM

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Material Finish	Material	Length	Length	Width [x]	Width [x]	Attachment Method	Package Cooled	Type	Fin Height	Fin Height	Thermal Resistance @ Natural
Ohmite PV-T2X-38E	Rectangular Pin Fins	Degreased	Aluminum	29.97 mm	1.18 in	17.53 mm	0.69 in	Clip PC Pin	TO-220 TO-247 TO-264	Board Level Vertical	38.1 mm	1.5 in	8.07 °C/W
Ohmite PA-T2X-38E	Rectangular Pin Fins	Black Anodized	Aluminum	29.97 mm	1.18 in	17.53 mm	0.69 in	Clip PC Pin	TO-220 TO-247 TO-264	Board Level Vertical	38.1 mm	1.5 in	7.46 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220, TO-247, TO-264 Aluminum Board Level, Vertical
