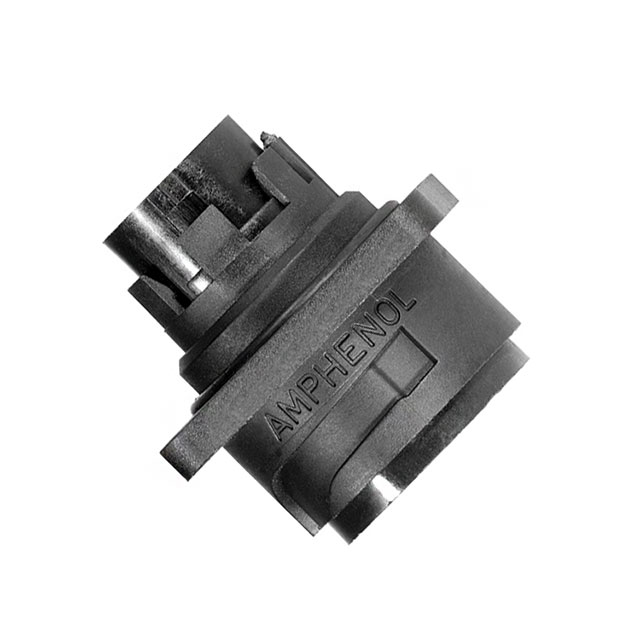

C01610G0150001

Active

Amphenol Tuchel Industrial

CONN RCPT HSG FMALE 16POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSG FMALE 16POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C01610G0150001

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm, 1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions [custom]	12
Number of Positions [custom]	3
Number of Positions [custom]	16
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

Part	Note	Type	Contact Size	Ingress Protection	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Shell Material	Shielding	Connector Type	Orientation	Fastening Type	Contact Shape	Mounting Feature	Shell Size - Insert
Amphenol Tuchel Industrial C01610G0150001	Contacts Not Included	For Female Sockets	1.5 mm 1.6 mm	IP65 - Dust Tight Water Resistant	Black	125 °C	-40 °C	Crimp	12	3	16	PE	UL94 V-0	Polyamide (PA66) Nylon 6/6	Unshielded	Receptacle Housing	N	Bayonet Lock	Circular	Flange	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (12 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
