TYRV1V228F25ML

Active

TE Connectivity Passive Product

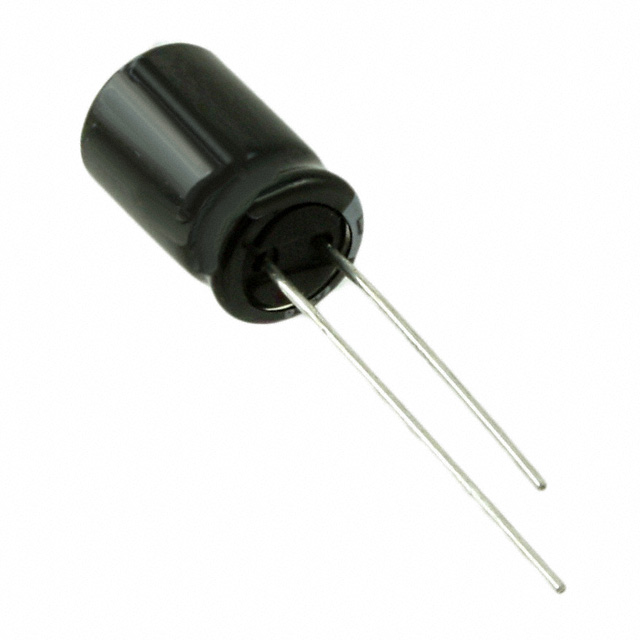

CAP ALUM 2200UF 20% 35V RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

CAP ALUM 2200UF 20% 35V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	TYRV1V228F25ML

Applications	General Purpose
Capacitance	2200 µF
Height - Seated (Max) [Max] [z]	0.984 "
Height - Seated (Max) [Max] [z]	25 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	2.05275 A
Ripple Current @ Low Frequency	1.785 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	35 V

Part	Voltage - Rated	Tolerance	Ripple Current @ Low Frequency	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Capacitance	Applications	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Passive Product TYRV1V228F25ML	35 V	20 %	1.785 A	Through Hole	Radial Can	85 °C	-40 °C	2.05275 A	2200 µF	General Purpose	7.5 mm	0.295 in	0.63 in	16 mm	3000 Hrs	0.984 "	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 85°C
