6GK57928DN000AA6
ActiveSiemens

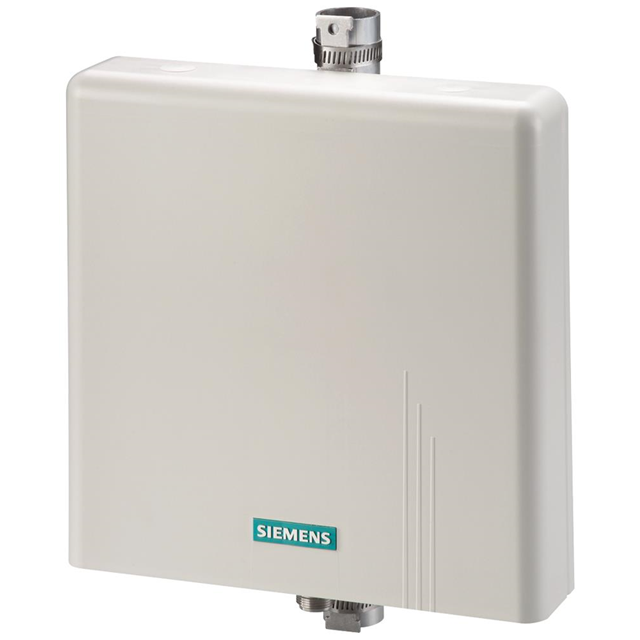

SIMATIC NET, IWLAN ANTENNA ANT 7
Deep-Dive with AI
Search across all available documentation for this part.
6GK57928DN000AA6
ActiveSiemens
SIMATIC NET, IWLAN ANTENNA ANT 7
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK57928DN000AA6 |
|---|---|
| Antenna Type | Module |
| Applications | WLAN |
| Frequency (Center/Band) | 2.55 GHz |
| Frequency Range [Max] | 2.7 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 14 dBi |
| Ingress Protection | IP23 |
| Mounting Type | Wall Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 372.24 | |
Description
General part information
6GK57928 Series
RF ANTENNA WLAN Module N Type Female Wall Mount
Documents
Technical documentation and resources
