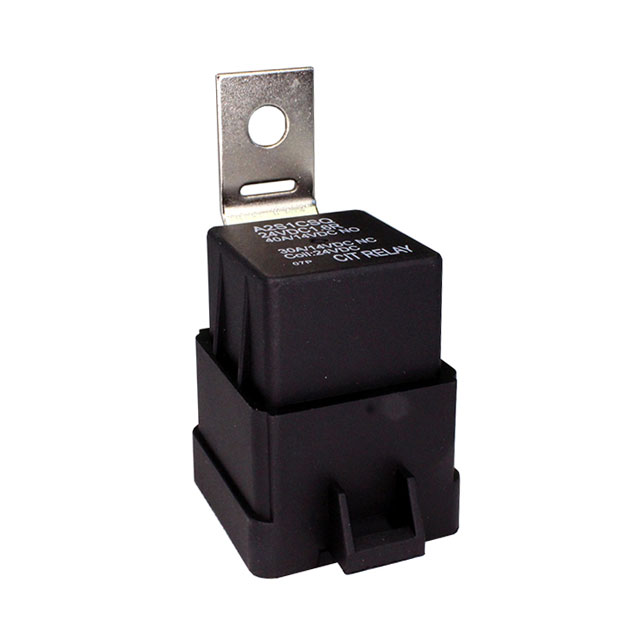

A2S1CSQ24VDC1.6R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 40A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A2S1CSQ24VDC1.6R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 40A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A2S1CSQ24VDC1.6R |
|---|---|
| Coil Current | 66.7 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 40 A |
| Features | Resistor, Sealed - Fully |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.71 | |
| 16 | $ 3.48 | |||
| 32 | $ 3.09 | |||
| 48 | $ 2.94 | |||
| 80 | $ 2.78 | |||
| 240 | $ 2.47 | |||
| 448 | $ 2.32 | |||
| 960 | $ 2.16 | |||
Description
General part information
A2S1CSQ Series
RELAY AUTOMOTIVE SPDT 40A 24V
